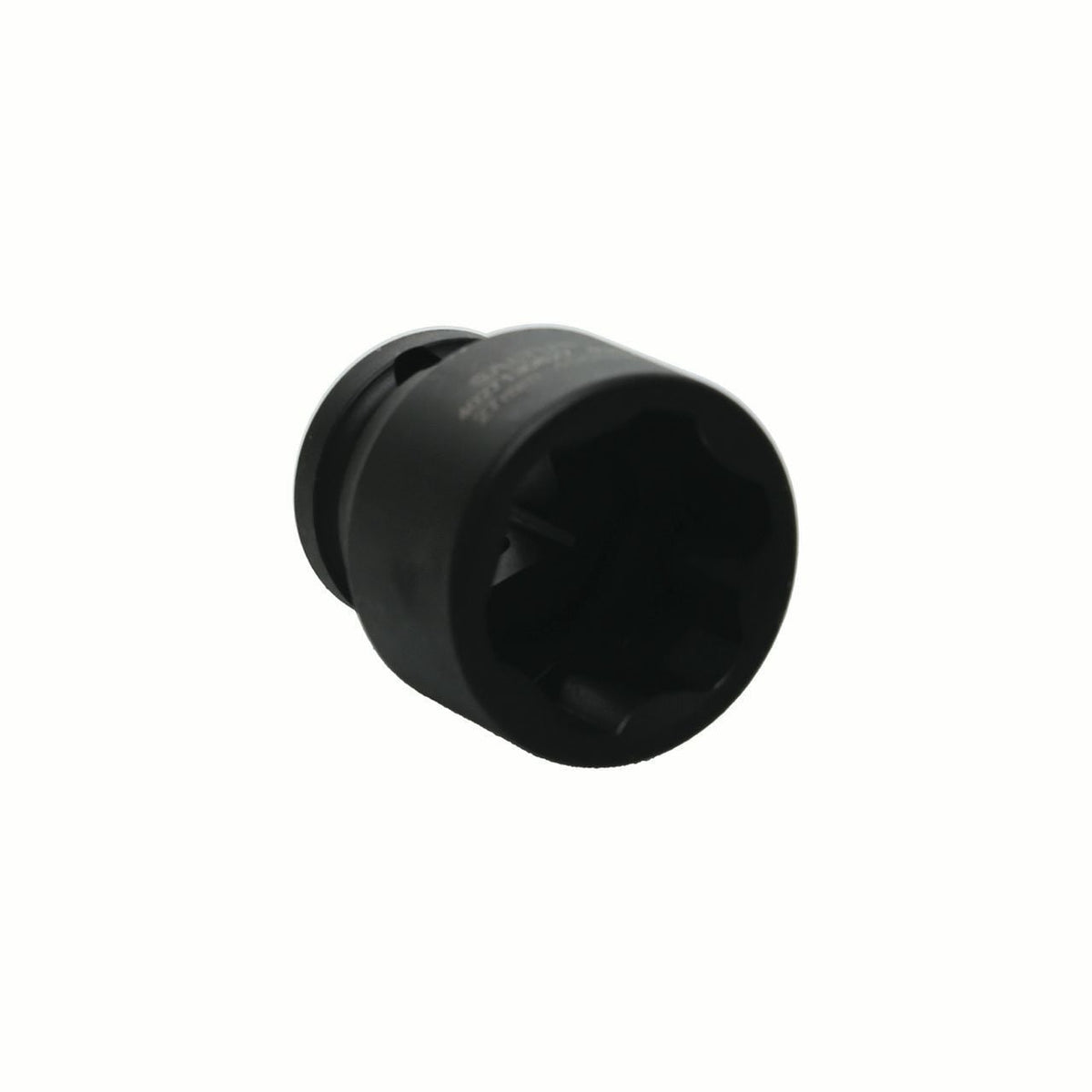

Desoutter Socket-SQ1/2-L40-SD27 | 1/2" Square Drive Power Socket | 27 mm, Surface drive, 40 mm
The Desoutter Socket-SQ1/2-L40-SD27 (part number 4027130827) is a 1/2" Square Drive Power Socket with input 1/2", output 27 mm and output type Surface drive. Fitted to a 1/2" square drive, the socket transfers tightening force from the power tool to the fastener in demanding assembly work.
Key features
- Input: 1/2"
- Output: 27 mm
- Output type: Surface drive
- Length L: 40 mm
- Part of a standard Saltus range of over 2,600 bits and sockets
- Custom-fitted sockets available for special applications
- Specifications
- Downloads
| Part Number | 4027130827 |
| Model | Socket-SQ1/2-L40-SD27 |
| Brand | Desoutter |
| Input | 1/2" |
| Output | 27 mm |
| Output type | Surface drive |
| Length L | 40 mm |
| Max torque | 455 N*m |
| Output D | 38.2 mm |
| Input d | 30 mm |
| Profile depth T | 16 mm |
| Weight | 160 g |
