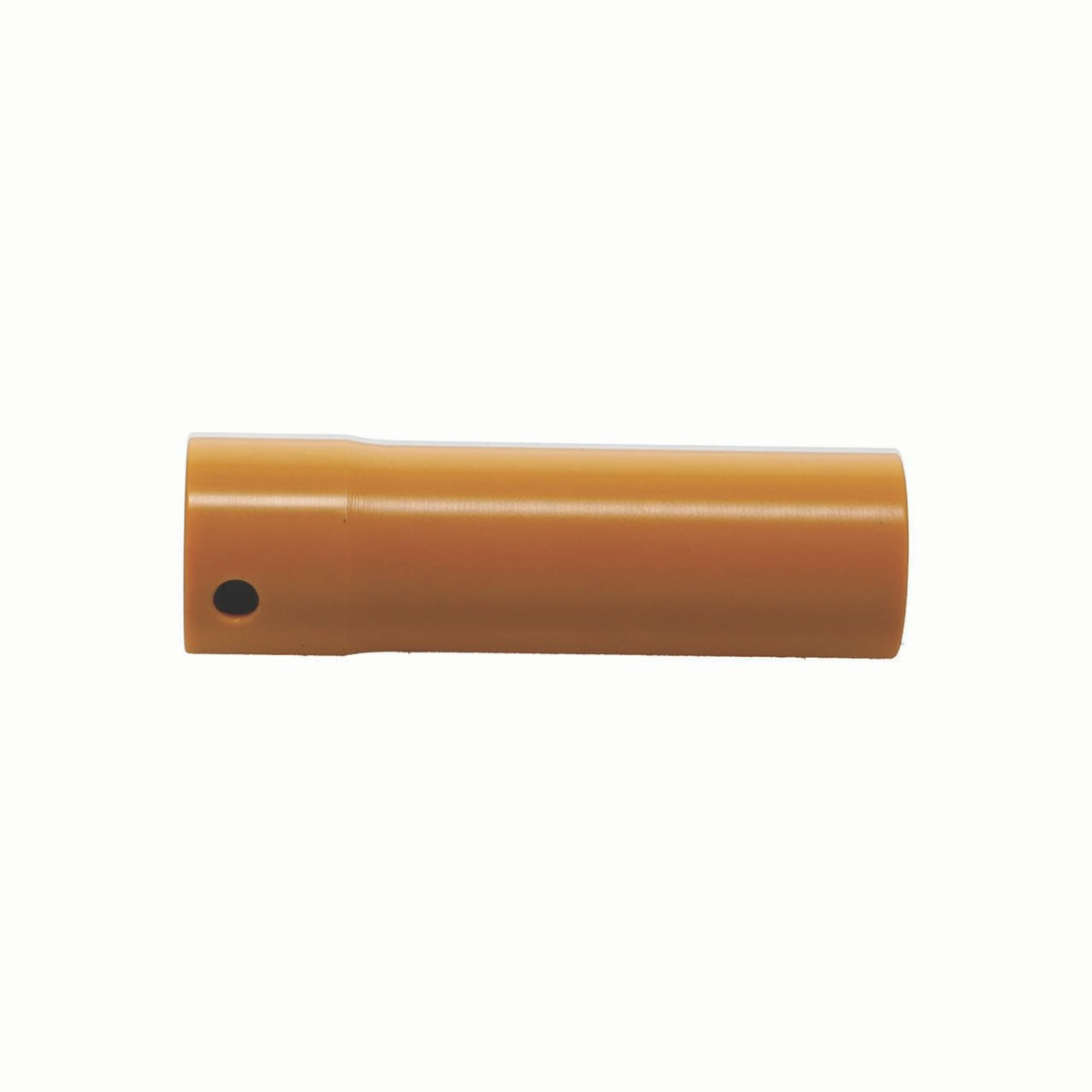

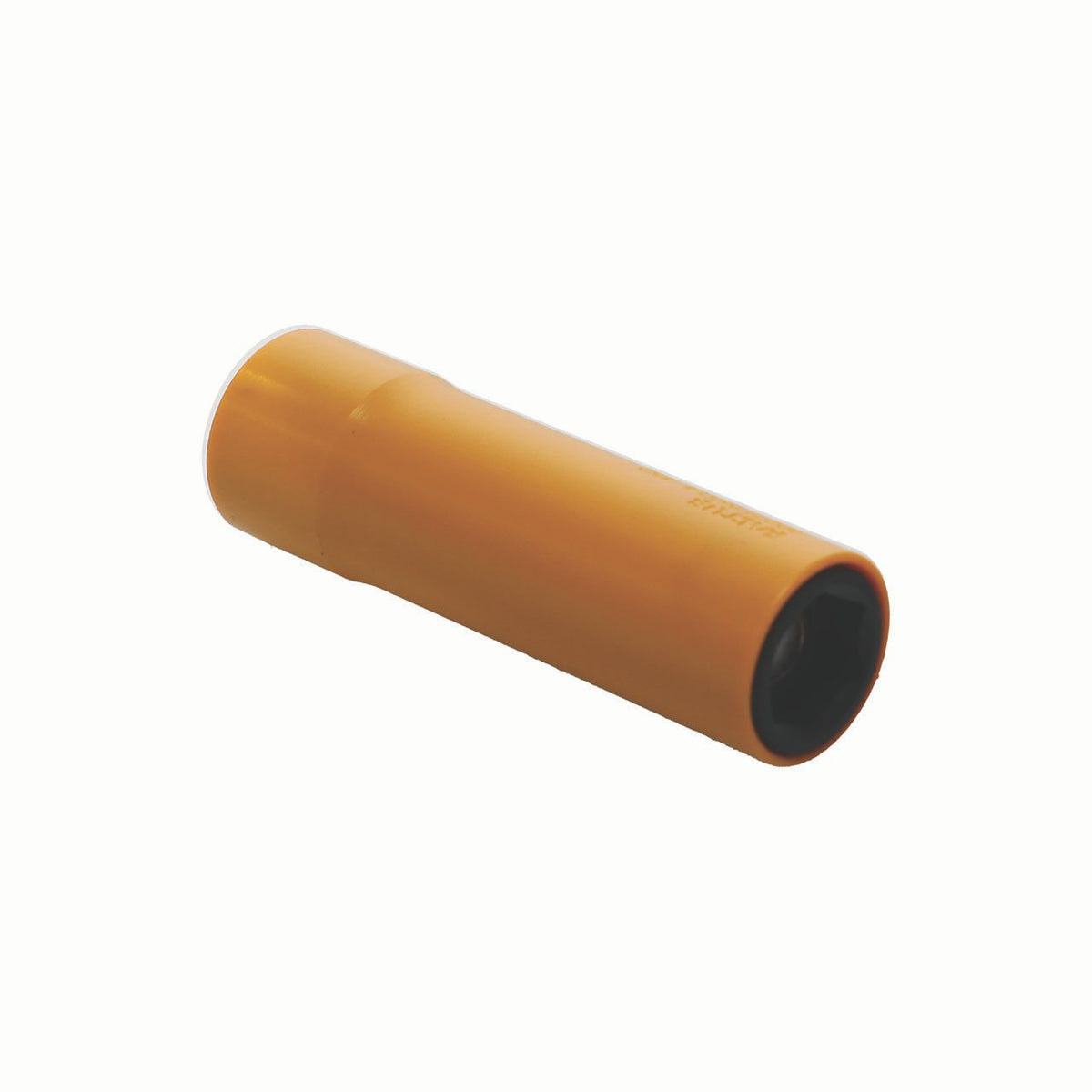

Desoutter Socket-SQ3/8-L80-HEX14-R-SM | 3/8" Square Drive Rotaction Socket | 14 mm, Hexagon, 80 mm
The Desoutter Socket-SQ3/8-L80-HEX14-R-SM (part number 4027126514) is a 3/8" Square Drive Rotaction Socket with output 14 mm, output type Hexagon and length l 80 mm. Output profile, length, torque rating and the matching socket cover reference for each socket are listed in the specification table.
Key features
- Output: 14 mm
- Output type: Hexagon
- Length L: 80 mm
- Max torque: 118 N*m
- Minimises the risk of entanglement
- Aimed at improving operator safety
- Specifications
- Downloads
| Part Number | 4027126514 |
| Model | Socket-SQ3/8-L80-HEX14-R-SM |
| Brand | Desoutter |
| Output | 14 mm |
| Output type | Hexagon |
| Length L | 80 mm |
| Max torque | 118 N*m |
| Output D | 23.8 mm |
| Profile depth T | 7 mm |
| Input | 3/8" |
| Input d | 25 mm |
| Features | Rotaction||Spring-mounted magnet |
| Socket cover reference | C25 |
| Weight | 169 g |
