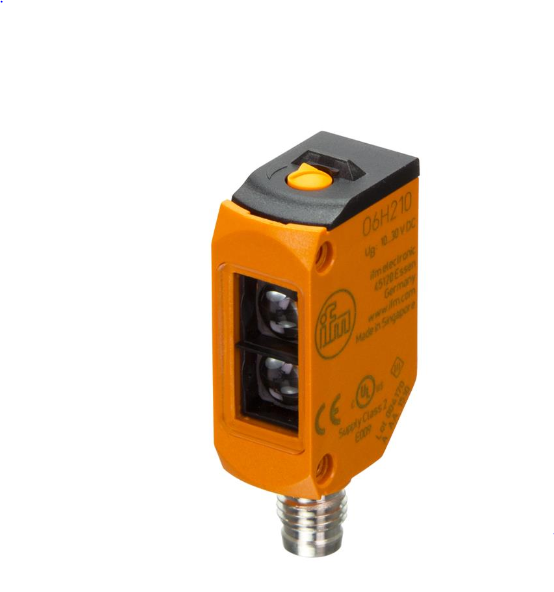

Diffuse reflection sensor ifm electronic O6H210 - O6H-CPKG/AS/4P
The compact diffuse reflection sensor with background suppression O6H210 - O6H-CPKG/AS/4P from ifm electronic is characterised by a plastic housing with protection rating IP67/IP65, a complementary light-on/dark-on mode and a range of 2-200 mm. The diffuse reflection sensor O6H210 is easily set via potentiometer. Thanks to the transparent black housing the LEDs for operating and switching status indication are clearly visible even in bright light. The O6H210 diffuse reflection sensor with a 4-pole M8 connection is the perfect solution for use in conveyor systems.
- Specifications
- Features
- Downloads
Current consumption [mA] | 22; ((24 V)) |
Electrical design | PNP |
Housing | rectangular |
Light Source | red light |
Operating voltage [V] | 10-30 DC V |
Output function | complementary |
Overload protection | yes |
Reverse polarity protection | yes |
Short-circuit protection | yes |
Switching frequency DC [Hz] | 1000 Hz |
- Particularly compact housing for use where space is restricted
- Intuitive setting of the sensitivity via potentiometer
- User-friendly selection of light-on or dark-on via rotary switch
- Precise background suppression sensing on highly reflective background
- Excellent price/performance ratio
Related Products

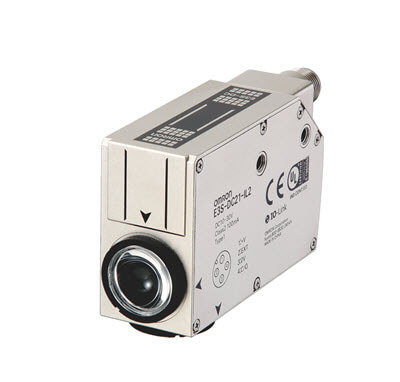

OMRON E3S-DCN21 | Registration mark sensor, diffuse, rectangular shape, IP67 , 10 +/- 3mm, 50µs response time, NPN, M12 connector

OMRON E3S-DCN21 | Registration mark sensor, diffuse, rectangular shape, IP67 , 10 +/- 3mm, 50µs response time, NPN, M12 connector

OMRON E3S-DCP21-IL3 | Registration mark sensor

OMRON E3S-DCP21-IL3 | Registration mark sensor

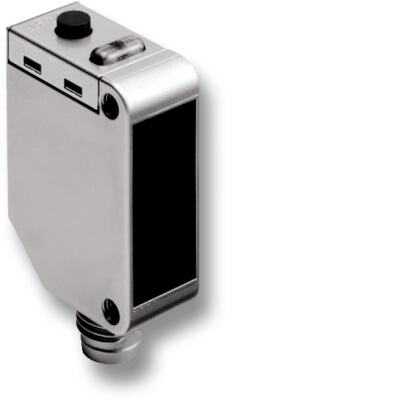

OMRON E3ZM-V81 2M | Registration mark sensor, diffuse, 12 +/- 2mm, 50µs response time, stainless steel body, IP69K, PNP, 2m cable
