DMQ QB7 E | Hall Effect Thickness Gauge | Extended range to 22 mm
Part Number : QB7 E
The DMQ QB7 E adds the extended range to the QB7 platform, measuring from 0 up to 22 mm with Hall effect technology. Thicker non-ferrous parts such as composites, laminates and large plastic containers can therefore be checked, alongside the standard 0–8 mm work.
Key features
- Standard (0–8 mm) and extended (8–22 mm) ranges
- Resolution 1 µm to 2.999 mm, 10 µm from 3 to 22 mm
- Accuracy 1–4% depending on calibration and target ball
- Ferrous content measuring feature
- Real-time graphics and statistics; 32,000-value memory
- USB, RS232 and optional Digimatic output (custom order)

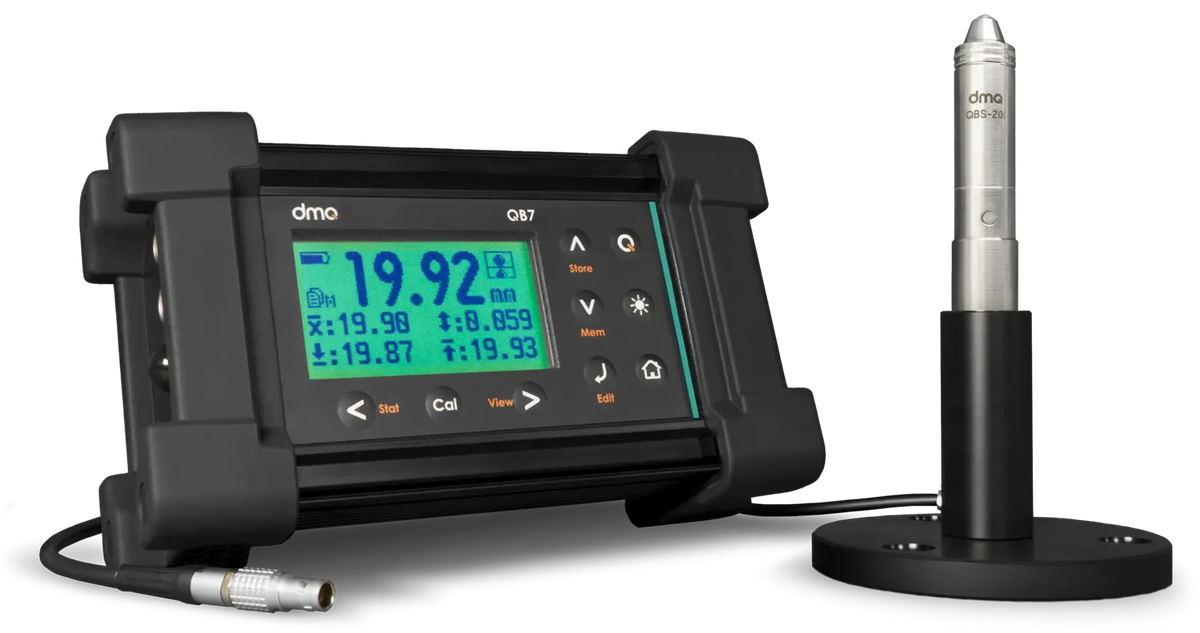

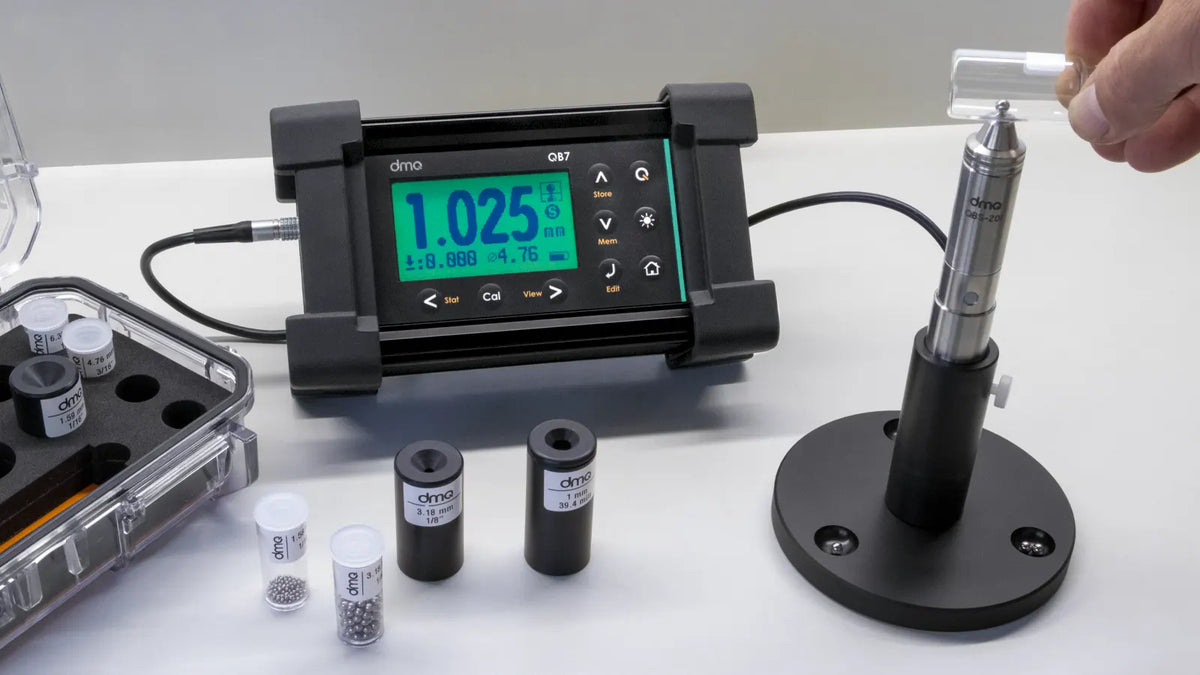

The QB7 E ships in a high-impact carrying case containing the QB7 unit, a USB battery charger, a Hall effect sensor with titanium cap, the sensor cable, a USB cable, a calibration kit in an internal case, a 2-piece sensor stand, dmq DataCenter on pendrive and a certificate of conformity.
