DMQ QCS234 | Straight V-Cut Ferrous Probe | 0–1500 µm, Ø12 mm

Name: DMQ QCS234 | Straight V-Cut Ferrous Probe | 0–1500 µm, Ø12 mm
Brand: Demeq
SKU: QCS234
Availability: InStock

Part Number : QCS234

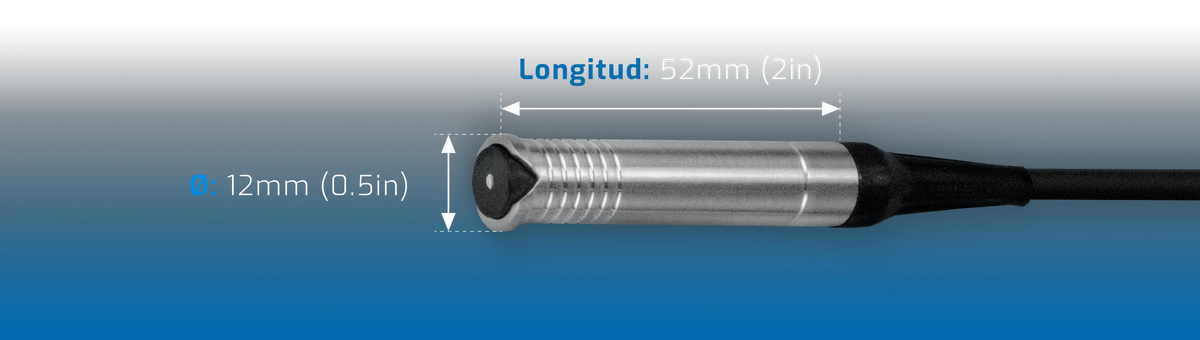

The DMQ QCS234 is a straight V-cut ferrous probe for DMQ coating thickness gauges, listed among the QC3 Series, QC5 Series accessories. A V-cut tip allows measurement on curved surfaces over ferrous bases.

Measuring range: 0–1500 µm
Probe diameter: 12 mm
Curvature: Concave R min 45 mm / convex R min 2 mm
Listed for: QC3 Series, QC5 Series

Availability: in stock

Specifications

Part Number	QCS234
Brand	DMQ
Type	Straight V-Cut Ferrous Probe
Diameter	12 mm
Range	0–1500 µm
Curvature	Concave R min 45 mm / convex R min 2 mm
Listed for	QC3 Series, QC5 Series
