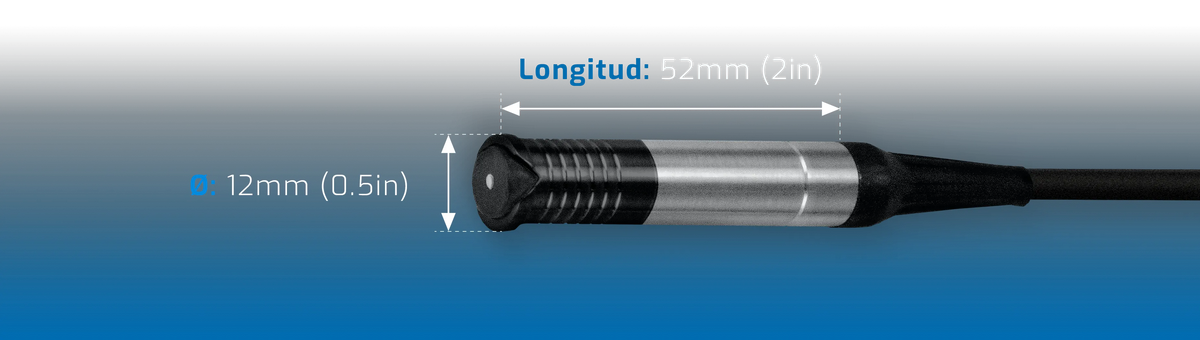

DMQ QCS434 | Straight V-Cut Combined Probe | 0–1500 µm, Ø12 mm

Name: DMQ QCS434 | Straight V-Cut Combined Probe | 0–1500 µm, Ø12 mm
Brand: Demeq
SKU: QCS434
Availability: InStock

Part Number : QCS434

The DMQ QCS434 is a straight V-cut combined probe for DMQ coating thickness gauges, listed among the QC5 Series accessories. A V-cut combined probe for curved surfaces on ferrous or non-ferrous bases.

Measuring range: 0–1500 µm
Probe diameter: 12 mm
Curvature: Concave R min 45 mm / convex R min 2 mm
Listed for: QC5 Series

Availability: in stock

Specifications

Part Number	QCS434
Brand	DMQ
Type	Straight V-Cut Combined Probe
Diameter	12 mm
Range	0–1500 µm
Curvature	Concave R min 45 mm / convex R min 2 mm
Listed for	QC5 Series
