DMQ QHS302 | Type DL Leeb Impact Device | 11 Nmm impact energy, 202 mm

Name: DMQ QHS302 | Type DL Leeb Impact Device | 11 Nmm impact energy, 202 mm
Brand: Demeq
SKU: QHS302
Availability: InStock

Part Number : QHS302

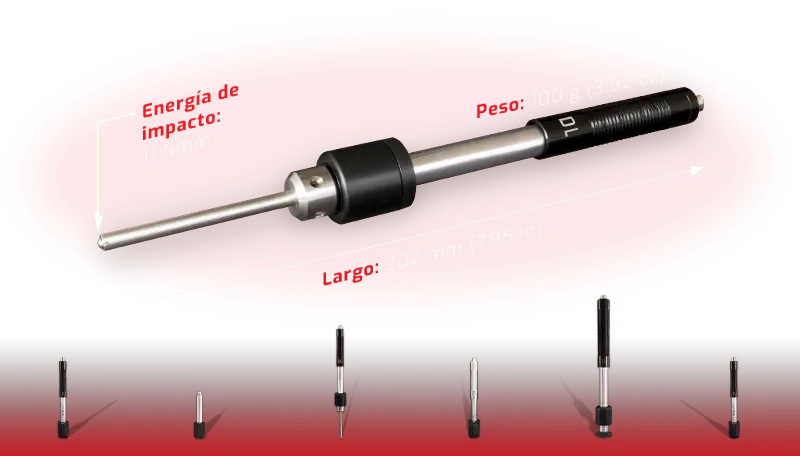

The DMQ QHS302 is a Type DL Leeb impact device listed among the QH7 Series accessories with GyroTag technology. Its long, slim tip (50 mm by 4 mm diameter) is made for hard-to-reach spots such as gear teeth and grooves.

Impact energy: 11 Nmm
Length: 202 mm
Weight: 100 g
Listed for: QH7 Series

Availability: in stock

Specifications

Part Number	QHS302
Brand	DMQ
Type	Leeb impact device, Type DL
Impact energy	11 Nmm
Length	202 mm
Weight	100 g
Listed for	QH7 Series
Technology	GyroTag technology
