Part Number : 115-AV

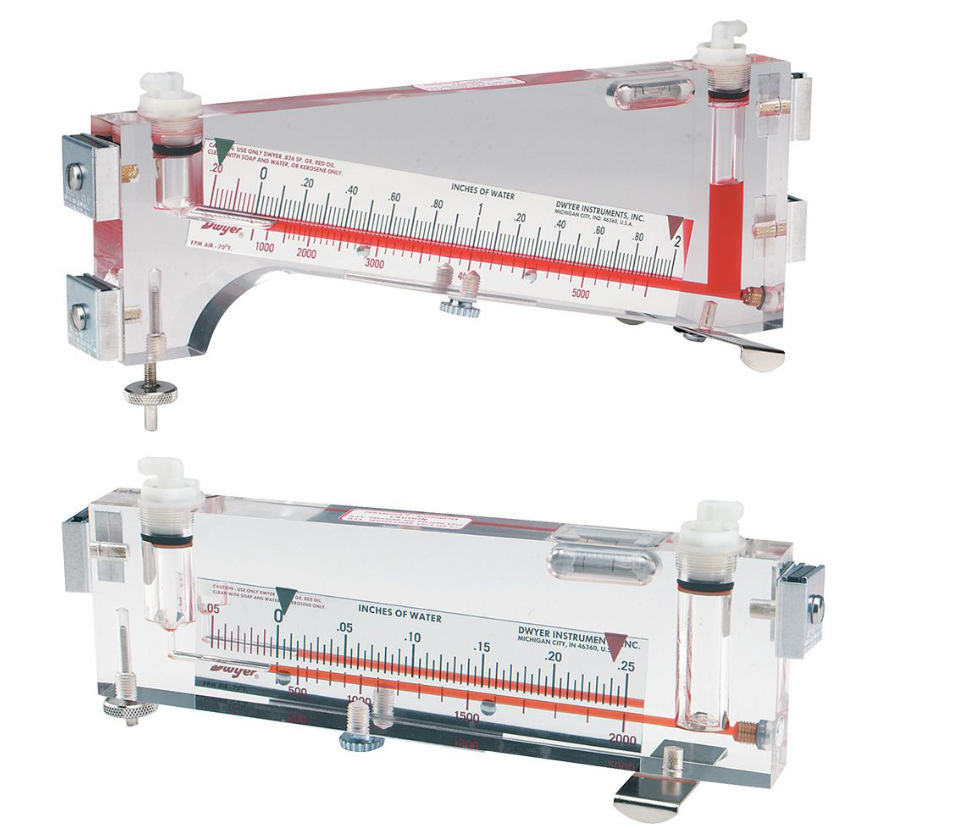

A Series 100 AV Durablock® Air Velocity Gage Kit, the Dwyer 115-AV is used to measure vacuum, differential pressure, static pressure, and air velocity. It provides exceptional portability and precision. Tolerances of ±.0002" are achieved in the precision machined solid acrylic plastic structure of the wells and inclined bore.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Accuracy	+/-2%
Air Velocity	Max: 2000 ft/min
Air Velocity	Min: 400 ft/min
Measurement method	Ft/Min
Pitot tube	12"
Range	0.05-0-.25" w.c.
Scale	6"
Series	Family: Dwyer Instruments Sensors
Type	Pitot Tube Anemometer

Plastic Body: A solid acrylic block that is one inch thick and nearly unbreakable. It is not prone to distortion and is steady.
Drilled Bore: Never needs to be adjusted again because of distortion; always straight and unbent.
Reflective Chrome Finish Scales: These easily remove reading parallax issues.
Easily zeroed with an adjustable thumbscrew lock mechanism.
The zero setting of the Model 125 AV is adjusted via a screw plunger.
Red Gage Fluid has a specific gravity of.826. produces a well-formed, readable meniscus as a result of its great wetability.
Screw-based leveling adjustment enables precise, rapid leveling. Glass bubble level integrated into the ground for easy reference.
