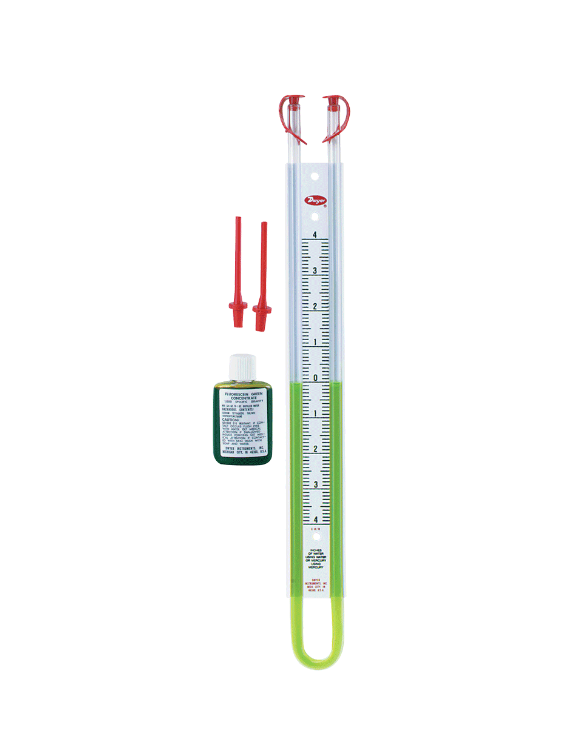

Dwyer 1221-M300-D | Flex-Tube U-Tube Manometer | 150-0-150 mm w.c.
Scaled 150-0-150 mm w.c., the Dwyer 1221-M300-D belongs to the Series 1221 Flex-Tube U-tube range and reads positive, negative or differential pressure.
- 150-0-150 mm w.c. range on the 1221-M300-D
- All-plastic body around a simple U-tube on the 1221-M300-D
- Columns of the 1221-M300-D use flexible, shatter-proof 0.375 in O.D. clear butyrate tubing
- 1221-M300-D columns are accessible for cleaning
- Extruded high-impact polystyrene scale keeps the 1221-M300-D columns aligned
- 1221-M300-D: white scale channel behind the tube and black silkscreened figures for contrast
- Specifications
- Features
- Downloads
| Part Number | 1221-M300-D |
| Brand | Dwyer |
| Range | 150-0-150 mm w.c. |
| Tubing | 0.375" O.D. butyrate |
| Scale Material | High-impact polystyrene |
| Type | U-tube manometer |
| Series | 1221 Flex-Tube |
- Manometer, Flex-Tube U-Tube, range: 150-0-150 mm w.c.
- Simplest and least expensive basic U-gage.
- A trustworthy U-tube manometer that delivers precise, highly visible readings even under harsh conditions
- To be used with red gage fluid, mercury, or water
- Dwyer® Part No. A-363, a scale clamp bar (standard on Series 1222 and available as an additional for Series 1221), is advised for mercury-filled manometers.
- Each manometer comes with a set of vinyl tube connectors that don't kink and a pair of carrying plugs.
