Dwyer Instruments 1227M | Dual range U-inclined manometer | 0-400 mm vertical | -5-0-70 mm inclined

Name: Dwyer Instruments 1227M | Dual range U-inclined manometer | 0-400 mm vertical | -5-0-70 mm inclined
Brand: Dwyer
SKU: 1227M
Availability: OutOfStock

Part Number : 1227M

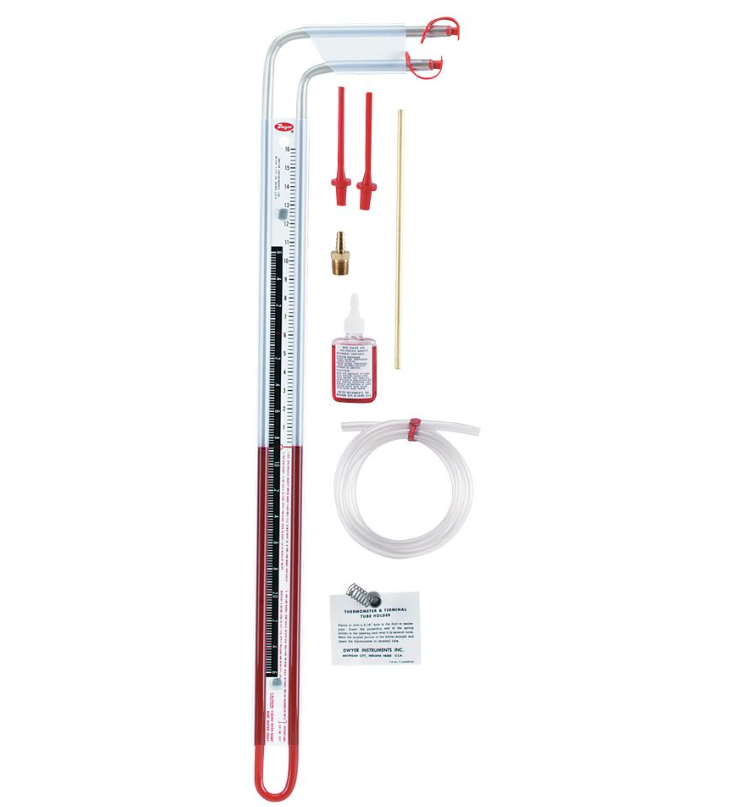

The cost-effective, multipurpose Series 1227 Dual Range Flex-Tube® U-Inclined Manometers are designed to measure high-range pressure on the right leg and low-range pressure on the bottom leg when used as an inclined manometer. It provides direct readings as a U-tube or an angled gage and is composed of strong, transparent plastic. The device has magnetic clips to secure it to any steel duct surface, and the scale itself conveniently has instructions printed on it.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Input	Type: Dual
Pressure Range	0-400 mm WC
Series	1227 Dual Range Flex-Tube® U-Inclined Manometer
Type	Inclined Tube, U-Tube, Well-Type

Two-range manometer with a U-inclination, 0-400 mm vertical and -5-0-70 mm inclined. Units of measurement: metric.
Overpressure prevention is offered by a clear, break-resistant indicator tube.
For positive definition, use black markings on a stark white scale.

Dwyer Instruments 1227M | Dual range U-inclined manometer | 0-400 mm vertical | -5-0-70 mm inclined

DOWNLOAD CATALOG
