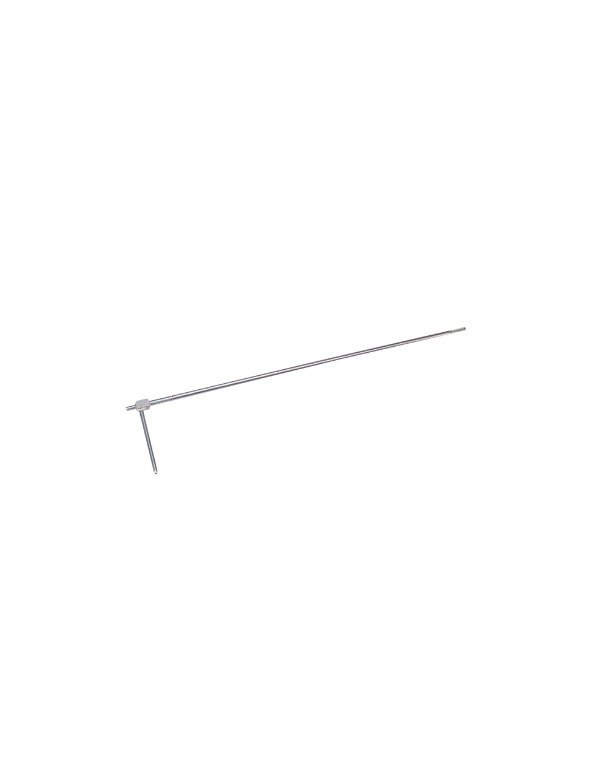

Dwyer 160F-24 | Straight Stainless Steel Pitot Tube | 24" Model, K-Factor 0.81

Name: Dwyer 160F-24 | Straight Stainless Steel Pitot Tube | 24" Model, K-Factor 0.81
Brand: Dwyer
SKU: 160F-24
Availability: InStock

Part Number : 160F-24

The Dwyer 160F-24 is the 24" model of the straight stainless steel Pitot tube, a straight design that passes through duct pressure taps and grilles and reaches areas a hook-style tube cannot.

24" straight model of the 160F series
±2% FS accuracy over 0 to 9000 FPM, K-factor 0.81 (24" tube)
Static port parallel to the sensing tube for fast alignment
1/4" OD connection; 304 SS wetted parts rated to 1500 °F

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Part Number	160F-24
Brand	Dwyer
Type	Straight Pitot Tube
Model Length	24"
Accuracy	±2% FS, 0 to 9000 FPM (45 m/s)
K-Factor	0.81
Process Connection	1/4" OD
Wetted Material	304 SS
Maximum Operating Temperature	1500 °F (815 °C)
Approvals	RoHS II (EU Directive 2011/65/EU)

Its straight form makes it simple to insert into ducts.
Accurate placement is made easier by permanently stamped insertion depth graduations.
Tip alignment with the flow is aided by the alignment indication.
