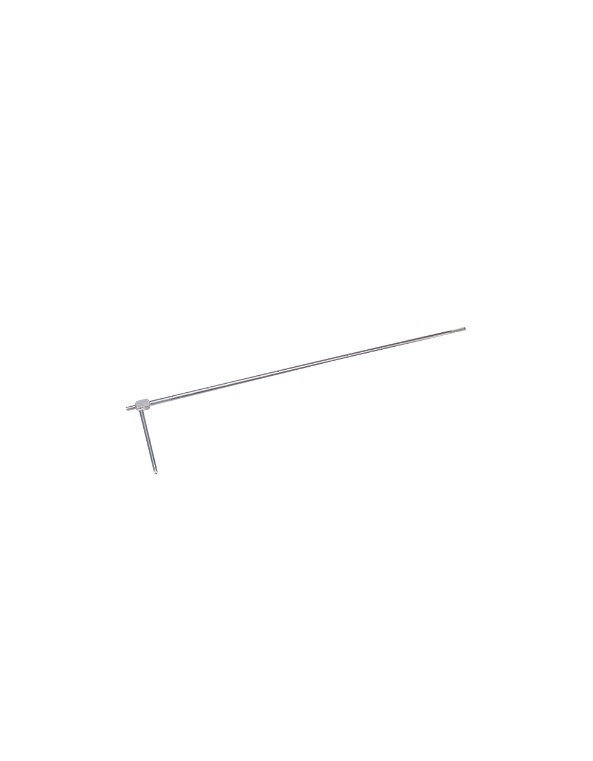

Dwyer 160F-60 | Straight Stainless Steel Pitot Tube | 60" Model, K-Factor 0.81
As the 60" model in the straight 160F range, the Dwyer 160F-60 stainless steel Pitot tube is suited to deep insertion through duct taps and grilles.
- 60" length, the longest single straight tube listed here
- 0.81 K-factor; ±2% FS over 0-9000 FPM for the 60" tube
- Corrosion-resistant 304 stainless steel with etched depth marks
- 1/4" OD process connection, rated 1500 °F (815 °C)
- Specifications
- Features
- Downloads
| Part Number | 160F-60 |
| Brand | Dwyer |
| Type | Straight Pitot Tube |
| Model Length | 60" |
| Accuracy | ±2% FS, 0 to 9000 FPM (45 m/s) |
| K-Factor | 0.81 |
| Process Connection | 1/4" OD |
| Wetted Material | 304 SS |
| Maximum Operating Temperature | 1500 °F (815 °C) |
| Approvals | RoHS II (EU Directive 2011/65/EU) |
- Its straight form makes it simple to insert into ducts.
- Accurate placement is made easier by permanently stamped insertion depth graduations.
- Tip alignment with the flow is aided by the alignment indication.
