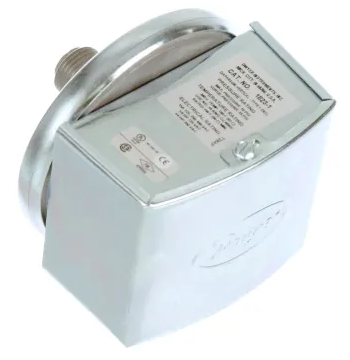

Dwyer 1823-1 | Differential Pressure Switch | 0.3-1 in w.c., SPDT, 1/8 in NPT
Part Number : 1823-1
Set across 0.3-1 in w.c., the Dwyer 1823-1 is a Series 1800 low differential pressure switch for general industrial use, with an SPDT contact, a listed min/max deadband of 0.08 and a 1/8 in NPT port. It gives 2% repeatability in a compact, low-cost package.
- Range of the 1823-1: 0.3-1 in w.c.
- Voltage rating 120-480 V; operating pressure 10 psi
- Adjustment inside the mounting stud allows mounting on one side of a panel with access from the other
- Air and non-combustible gas service (1823-1)
- FM approved, UL and CSA listed (1823-1)
Free UAE shipping available
For pricing, please contact our experts.
