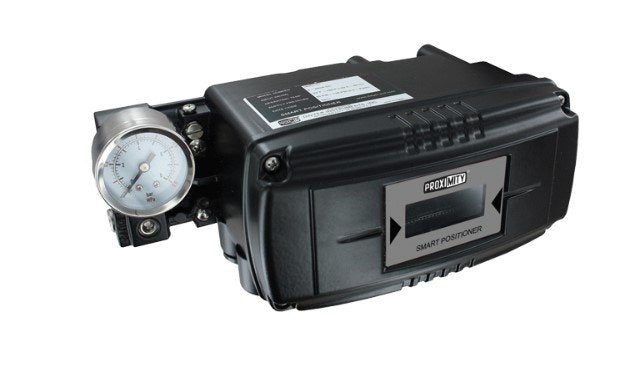

Dwyer 185EL-S1SS | Linear Smart Positioner | HART, single action, stainless steel
Part Number : 185EL-S1SS
Dwyer 185EL-S1SS is the stainless steel build of the Series 185 linear smart positioner, set up for single action and HART communication. From a 4-20 mA controller signal it manages the stroke of linear valves such as globe valves, with a built-in LCD for status checks in the field.
- 185EL-S1SS stroke: 0.5 to 6" (10 to 150 mm) or 0 to 90°
- Auto calibration and analog feedback output on the 185EL-S1SS
- 185EL-S1SS air supply 35 to 116 psi (2.4 to 8 bar); flow 2.1 scfm (60 LPM)
- Linearity and hysteresis of the 185EL-S1SS: ±0.5% FS each; repeatability ±0.3% FS
- 185EL-S1SS NEMA 4X (IP66) stainless enclosure, -30 to 85°C, 6.4 lb (2.9 kg)
Free UAE shipping available
For pricing, please contact our experts.
