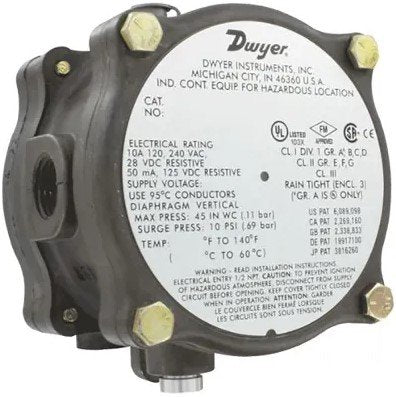

Dwyer Instruments 1950G-5-B-24 | PRESSURE SWITCH | ATEX APPROVED
Part Number : 1950G-5-B-24
Dwyer Instruments manufactures the 1950G-5-B-24, an adjustable differential pressure switch that is waterproof and explosion-proof. Its electrical rating is 24 VDC, its pressure switch range is 1.4–5.5 in w.c. (inH2O), and its diaphragm is Buna-N. It is compatible with natural gases and features screw-clamp terminal blocks for electrical connections in addition to 1/8 in NPT threaded female ports for process connections. UL listed for use in Class I, Groups A, B, C, and D; Class II, Groups E, F, and G; and Class III atmospheres is the 1950G-5-B-24. Additionally, it is CSA & FM approved for Class I, Div. 1, Groups B, C, D; Class II, Div., and ATEX / IECEx compliant.
