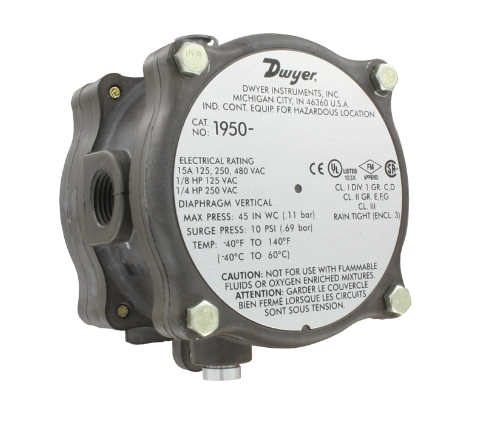

Dwyer 1950P-25-2F | Explosion-Proof Differential Pressure Switch | 4-25 psid, 1/8 in NPT F
Part Number : 1950P-25-2F
The Dwyer 1950P-25-2F is a Series 1950 explosion-proof differential pressure switch for 4-25 psid, with a 1/8 in NPT female process port and an SPDT contact rated 15 A at 125, 250 or 480 VAC. The 1950P-25-2F's weatherproof housing is FM approved for Class I Div 1 Groups C and D, Class II Groups E, F and G, and Class III hazardous atmospheres.
- 4-25 psid range on the 1950P-25-2F
- SPDT contact, 15 A @ 125/250/480 VAC (1950P-25-2F)
- 1/8 in NPT female process port; screw terminal wiring (1950P-25-2F)
- Raintight NEMA 3 (IP54) with drain plug and O-ring seal; NEMA 7 and 9 (1950P-25-2F)
- External set point screw; front cover removes for wiring (1950P-25-2F)
- CE, UL, CSA listed; gauge proof 500 psig; 3.25 lb (1950P-25-2F)
Free UAE shipping available
For pricing, please contact our experts.
