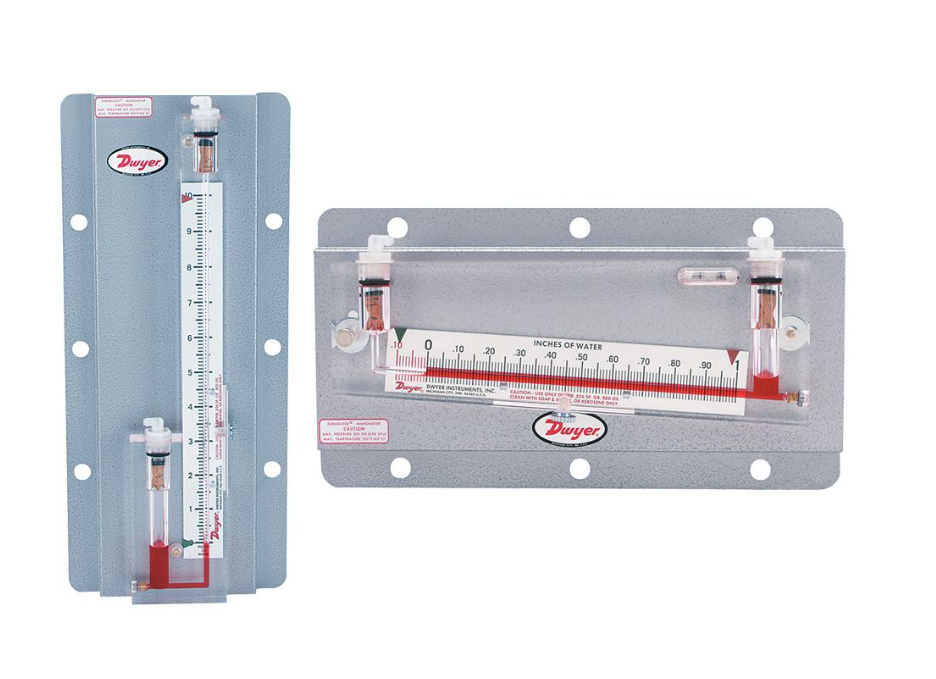

Dwyer 308 | Well-Type Stationary Manometer | 0-8" w.c., 9" Scale
With a 0-8" w.c. range on a 9" scale, the Dwyer 308 Durablock well-type gage is a vertical manometer for laboratory and general industrial draft readings.
- Range 0-8" w.c. in 0.10" divisions on a 9" scale
- Accuracy ±1%, maximum operating temperature 150 °F (308)
- Solid acrylic block with precision-machined bore and well, 0-8" model
- Reads in inches of water column
- Weight 3 lb 7 oz
- Specifications
- Features
- Downloads
| Part Number | 308 |
| Brand | Dwyer |
| Type | Well-Type Manometer |
| Series | Series 300 Durablock |
| Range | 0-8" w.c. |
| Minor Division | 0.10" |
| Scale Length | 9" |
| Accuracy | ±1% |
| Maximum Operating Temperature | 150 °F |
| Units | inch H2O |
| Weight | 3 lb 7 oz |
- 1" Thick Acrylic Plastic The body is a single, nearly indestructible block that is stable and free from distortion risk.
- Without any kinks or dents, the drilled bore is accurate to ±.0002" and won't need to be recalibrated due to distortion.
- For the most precise readability, a consistent, well-shaped meniscus is formed by carefully choosing gauge fluid with good wetability qualities.
- Easily zero in with these polished aluminum adjustable reflective scales that lock with a thumbscrew.
- To get optimal precision and consistency in parallax-free reading, just align the meniscus with the picture reflected in the scale.
- Over-Pressure Protection Traps stop fluid loss brought on by pressure surges or over range pressures.
- For inclined style gauges, leveling adjustment is as easy as removing a locking thumb screw on the side or bottom of the gauge and adjusting in accordance with the integrated.
