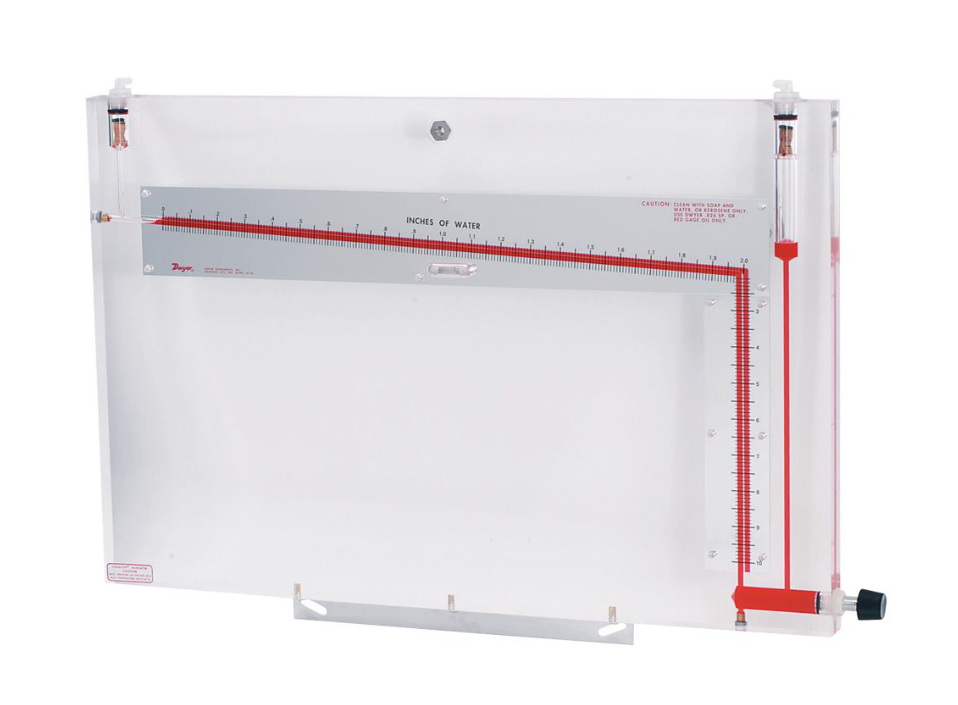

Dwyer Instruments 421-23 | Inclined/vertical manometer | Inclined range: 0-2.2" w.c. | .02 min. div. | 6-1/8" scale; vertical range 2.4-23" w.c. | min. div. .20 | 10-1/4" scale

Client Protection

Dedicated Support

Genuine Products

Client Protection

Dedicated Support

Genuine Products

Part Number : 421-23

The Dwyer® Series 420 Inclined-Vertical Manometer, model number 421-23, is a very accurate instrument that is specifically built for measuring tiny differential pressures precisely in test and laboratory settings. The 20" length of the angled range bore allows for sufficient multiplication to indicate fluid movement in this crucial lower portion of the range.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Accuracy	0.25%
Measurement method	Differential
Measuring Units	inch H2O
Minor Division	Inclined: 0.02 Vertical: 0.20
PRESSURE	Max: 23 IN of H2O
Range	Inclined: 0-2.2" w.c. Vertical: 2.4-23.0" w.c.
Scale	Inclined: 6-1/8" Vertical: 10-1/4"
Series	Family: Dwyer Instruments Sensors
Type	Inclined Tube Manometer

The 1-1/4" thick acrylic plastic body is a sturdy, nearly indestructible, stable piece of plastic that is completely devoid of any chance of distortion.
The 3/16" BORES, ACCURATE TO ±.0002" are inherently straight and won't need to be re-calibrated due to distortion.
LEVEL GROUND GLASS BUBBLE It is 1-1/2" long by.375" in diameter, sensitive to 115–125 sec./2 MM, and has two red lines for simple alignment and visibility.
To obtain PARALLAX-FREE READING, which maximizes accuracy and consistency, just align the meniscus with the scale's polished aluminum reflection.
For ideal readability, SELECTED GAGE FLUID with good wetability properties creates a steady, well-shaped meniscus.
For simple zeroing, use the O-RING SEALED FLUID LEVEL PLUNGER ADJUSTMENT.
To ensure that the equipment satisfies the highest standards, PRECISION BUILT.

DOWNLOAD CATALOG
