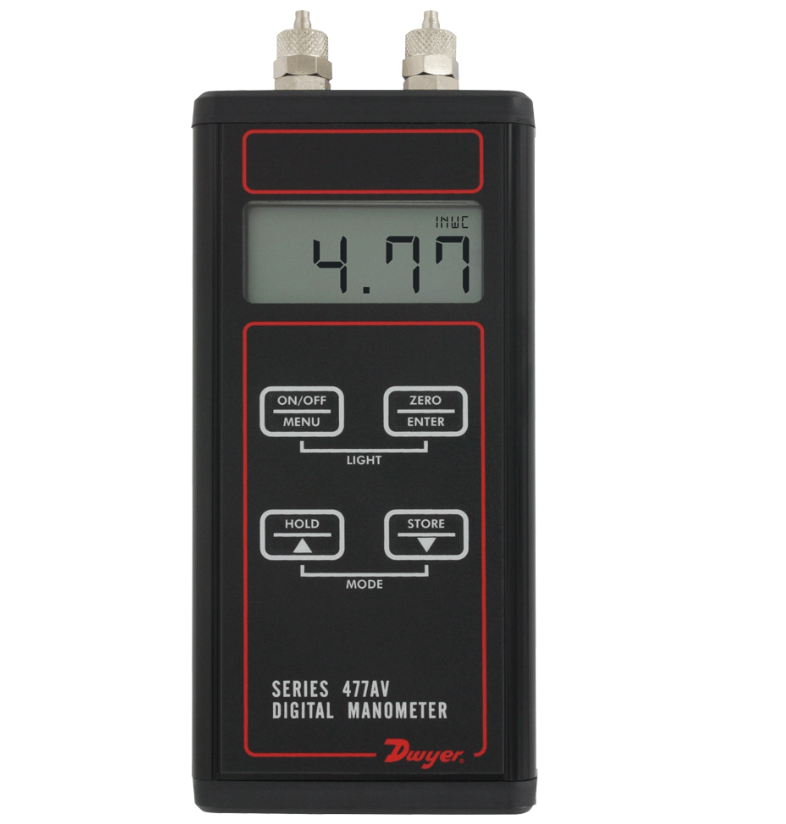

Dwyer Instruments 477AV-4 | Digital manometer | Range 0-10.00 psi | Air velocity/flow modes

Name: Dwyer Instruments 477AV-4 | Digital manometer | Range 0-10.00 psi | Air velocity/flow modes
Brand: Dwyer
SKU: 477AV-4
Availability: OutOfStock

Part Number : 477AV-4

Along with many other useful features, the Series 477AV Handheld Digital Manometer now comes with measures for pressure, flow, and velocity. Accuracy, time savings, and reduced error associated with human calculations are provided by the integrated air velocity and flow computations. This device also includes a damping feature to account for reading fluctuations and configurable zero and span values for field calibration.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Accuracy	+/-0.5% FS, 60 to 78°F (15.6 to 25.6°C); +/-1.5% FS from 32 to 60°F and 78 to 104°F (0 to 15.6°C and 25.6 to 40.0°C)
Approvals	CE
Connection	Process: Two barbed connections for use with 1/8" (3.18 mm) or 3/16" (4.76 mm) ID tubing. Two compression fittings for use with 1/8" (3.18 mm) ID x 1/4" (6.35 mm) OD tubing for 477AV-7 and 477AV-8 only
Display	0.42" (10.6 mm) 4 digit LCD
Material	Wetted: Consult factory
Maximum operating temperature	0 to 140°F (-17.8 to 60°C)
Measuring Units	Flow: cfm, m3/h, m3/s
Measuring Units	Pressure: in w.c., ft. w.c., in Hg, psi, oz/in2, mm w.c., cm w.c., mm Hg, mbar, Pa, kPa, hPa
Measuring Units	Velocity: fpm, fps, mph, m/h, m/s, k/h, knot
Power	9 V Alkaline battery, installed non-functional, user replaceable
Pressure Range	0-10.00 psi
PRESSURE	Hysteresis: +/-0.1% of FS
PRESSURE	Max: 30 psig
Series	Family: Dwyer Instruments Sensors
Storage Temperature	-4 to 176°F (-20 to 80°C)
Temperature	Compensated Temperature Limits: 32 to 104°F (0 to 40°C)
Weight	10.2 oz (289 g)

Computes and shows volumetric air flow and air velocity.
The sturdy metal casing shields the instrument from harm when being used or transported.
Nine engineering units, selectable in metric and English.
A sizable, well readable display with a backlight for usage in low light.
Keeps minimum, maximum, and average statistics for up to 40 readings.
An easy-to-use, comprehensive air velocity kit option is offered.
