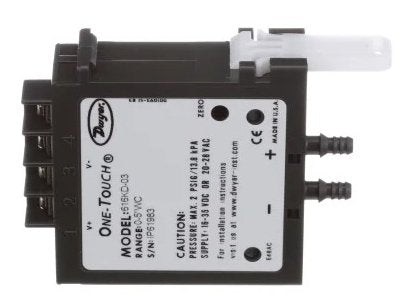

Dwyer 616KD-03 | Differential Pressure Transmitter | 0 to 5 in w.c., 4-20 mA, DIN Rail

Name: Dwyer 616KD-03 | Differential Pressure Transmitter | 0 to 5 in w.c., 4-20 mA, DIN Rail
Brand: Dwyer
SKU: 616KD-03
Availability: InStock

Part Number : 616KD-03

Ranged 0 to 5 in w.c. with 4-20 mA output, the Dwyer 616KD-03 DIN-rail differential pressure transmitter (Series 616KD) uses One-Touch push-button calibration: let it settle at zero reference pressure, press the button, and zero and span are set.

0 to 5 in w.c. range, 4-20 mA output (616KD-03)
Supply: 20-28 VAC or 16-35 VDC (616KD-03)
DIN rail mounting with terminal block wiring on the 616KD-03
IP20 protection (616KD-03)
No turn pots or separate calibration devices needed for the 616KD-03

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Part Number	616KD-03
Brand	Dwyer
Range	0 to 5 in w.c.
Output	4-20 mA
Series	616KD
Supply Voltage	20-28 VAC / 16-35 VDC
Mounting	DIN rail
Termination	Terminal block
Protection	IP20
Calibration	One-Touch push button, zero and span

No additional reference pressure sources and separate calibration devices are necessary.
Back mounting tabs are integral to the molded housing.
Easy-to-wire open screw terminals at the top of the housing.
