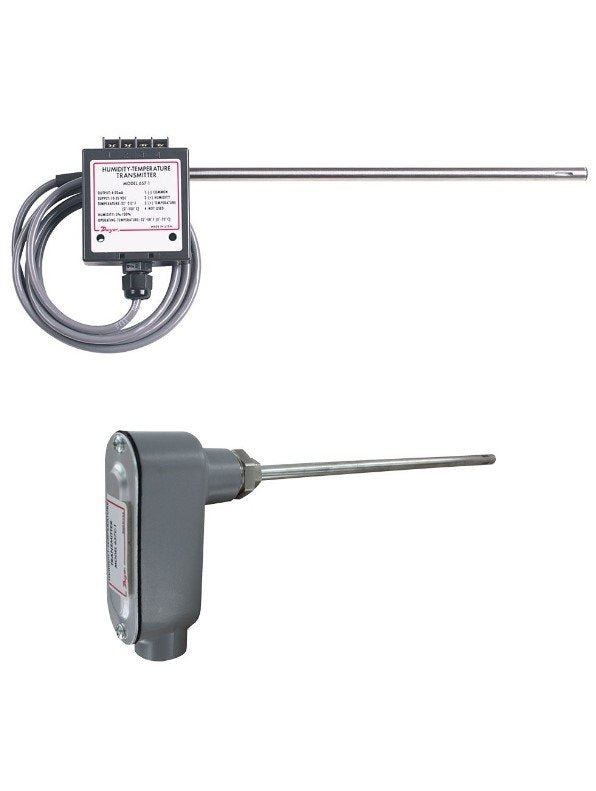

Dwyer Instruments 657-1 | Relative humidity/temperature transmitter
Two 4–20 mA channels are available on the Series 657, Model 657-1 Relative Humidity/Temperature Transmitters, enabling the production of independent output signals for relative humidity and temperature. These devices measure temperature with an accuracy of ±1°F and humidity with ±2%. Either of the two supplementary kits below can be used to mount a stainless steel probe to most ductwork with ease.

Free UAE shipping available
- Specifications
- Features
- Downloads
Accuracy | Relative humidity: +/-2% (10 to 90% RH), +/-3% (0 to 10% and 90 to 100% RH); Temperature +/-1°F (0.5°C) |
Connection | Electrical: 4 screw type terminals |
Manufacturer | Dwyer Instruments |
Maximum Operating Pressure | 1 psi (0.7 bar) |
Maximum operating temperature | 32 to 140°F (0 to 60°C) |
Mounting | Mount in any position |
Output Signal | 2 channels each 4-20 mA. Loop powered on the RH channel |
Power | 10-35 VDC |
Probe Type | SS 5/16" x 10" (0.8 x 25.4 cm) |
Range | Relative humidity: 0 to 100%; Temperature: 32 to 212°F (0 to 100°C) |
Temperature Range | Compensated: 32 to 140°F (0 to 60°C) |
Type | Relative Humidity/Temperature Transmitters |
Weight | 5.5 oz (156 g) |
- Thin film RTD temperature sensors and polymer film humidity sensors provide incredibly stable and dependable readings.
- Flexibility in installation is provided via remote mount housing (657-1).
- Industrial applications benefit greatly from the robust die-cast aluminum housing (657C-1).
