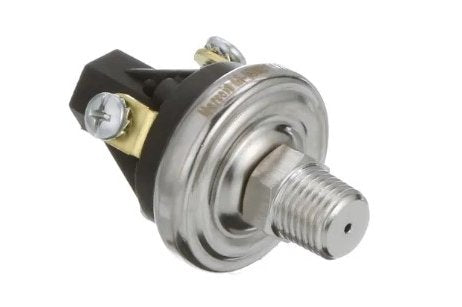

Dwyer Instruments A6-653221 | Pressure Switch | 25 to 50 psi | 1/4 NPT | IP65 | SPST-NO/NC | A6 Series
The Dwyer A6 Series is a simple, dependable, and long-lasting pressure switch designed for extended duty. The durable pressure switches of the Series A6 have been especially engineered to withstand extended duty applications. These switches work with a range of fluids and are made with a polyimide film diaphragm. The switches can be installed in any orientation and include a 1/4" male NPT process connector for convenience of installation. The Series A6 pressure switches are small, have excellent set-point integrity, and may be easily adjusted at the field level.
- Specifications
- Features
- Downloads
| Application | Air ; Motor Oils ; Transmission Oils ; Jet Fuels ; Hydrocarbon |
| Connection | Process: 1/4 in NPT |
| IP PROTECTION RATING | IP65 |
| IP Rating | IP65 |
| Measurement range | 25 to 50 psi |
| Measuring Units | psi |
| Mounting Type | 1/4 in NPT |
| Operating Fluid | Air ; Motor Oil ; Jet Fuel ; Transmission Oil |
| Operating pressure | 150 PSI |
| Output | SPST-NO/NC |
| Pack Type | Cylinder |
| Port Size | 1/4 in |
| Series | A6 Series |
| Temperature Range | -40 to 248 F |
| Termination | Screw |
| Weight | 0.13 lb |
- Long life for extended duty applications is indicated by a high switch cycle.
- Reliable switching for equipment and OEM applications is made simple with a feature that allows mounting in any position.
