Dwyer Instruments ANE-1 | Differential Pressure Anemometer;ANE-1;Bi-Directional Anemometer
A rugged, electronics-free bi-directional anemometer that connects to a compatible manometer via silicone tubing for durable field air velocity readings.
Request a quote in under a minute — call +971 6 5436933.
Part No.: ANE-1

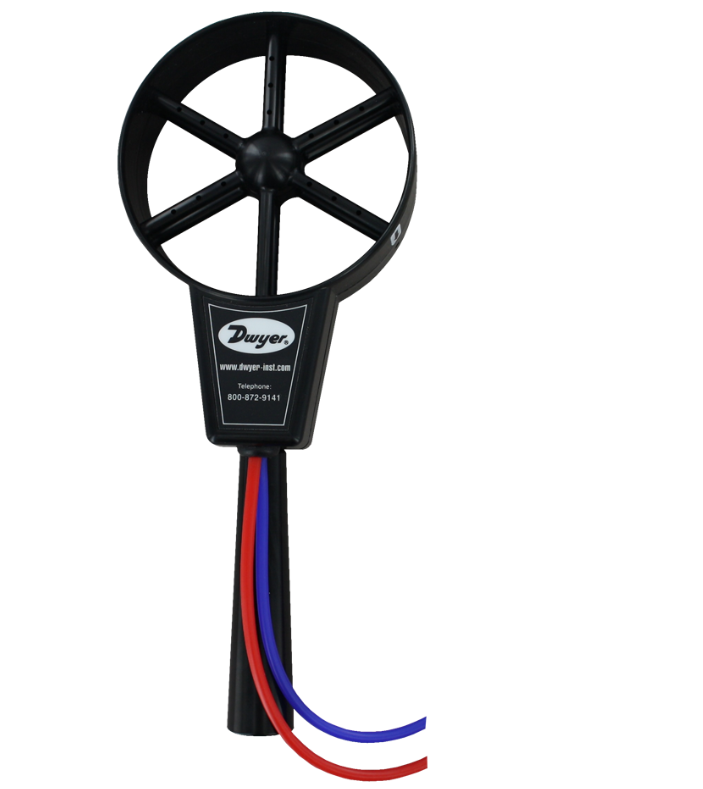

The Dwyer ANE-1 Bi-Directional Differential Pressure Anemometer is designed for durable air velocity measurement in field environments. With no moving parts and no internal sensor electronics, the ANE-1 provides a rugged alternative to conventional vane or thermal anemometers.
The ANE-1 works as a differential pressure pickup and connects to a compatible manometer or pressure-sensing device using the included silicone tubing and detachable adapters. The resulting differential pressure can then be used to determine air velocity.
Its bi-directional design allows the unit to measure airflow from either direction without requiring repositioning, making it convenient for HVAC and process air applications.
The ANE-1 features a premium ABS body and phenolic handle designed for comfortable handling during measurement. Its lightweight construction, weighing approximately 0.48 lbs, makes it practical for technicians who need to carry and use the instrument in different field locations.
With an operating temperature range of 23–122°F, the ANE-1 is suitable for a range of indoor HVAC and process air measurement applications where a dedicated electronic anemometer may not be required.
This model is part of Dwyer Instruments' dedicated product line-up carried by GeneralTech Shop. Contact our team if you need help confirming whether the ANE-1 is the correct variant for your application.
Ready to order the ANE-1? Speak to our team. Call +971 6 5436933.
Key Benefits
- No moving parts or internal electronics
- Bi-directional sensing for airflow measurement from either direction
- Connects to a compatible manometer through silicone tubing
- Includes removable tubing and detachable adapters
- Lightweight ABS body with phenolic handle
- Suitable for rugged field air velocity measurement
Who This Product Is Best For
- HVAC field technicians
- Maintenance technicians working with air handling systems
- Process air measurement professionals
- Technicians who already use a compatible manometer
- Users looking for a durable, low-maintenance air velocity sensing solution
How to Use
- Connect the ANE-1 silicone tubing to a compatible manometer or pressure-sensing device.
- Position the anemometer in the air stream in either flow direction.
- Read the resulting differential pressure signal on the connected manometer.
- Convert the pressure reading to air velocity according to the applicable manometer reference information.
Frequently Asked Questions
Does the Dwyer ANE-1 have its own display?
No. The ANE-1 is a sensing head that connects to a separate compatible manometer or pressure-sensing device for displaying and interpreting the measurement.
Can the ANE-1 measure airflow in both directions?
Yes. Its bi-directional design allows airflow to be measured from either direction without repositioning the unit.
What is the operating temperature range of the ANE-1?
The operating temperature range is 23 to 122°F.
What is the Dwyer ANE-1 made from?
The unit features a premium ABS body with a phenolic handle and includes silicone tubing and detachable adapters.
Why choose the ANE-1 over an electronic anemometer?
The ANE-1 has no moving parts or internal electronics, making it a low-maintenance option for field applications where a compatible manometer is already available.
Does GeneralTech Shop deliver the ANE-1 across the UAE?
Call +971 6 5436933 and the GeneralTech Shop team can confirm delivery availability and timelines for your emirate.
Is a calibration certificate available for the ANE-1?
Calibration and certification availability may depend on the order. Call +971 6 5436933 and the team can confirm the available options.
