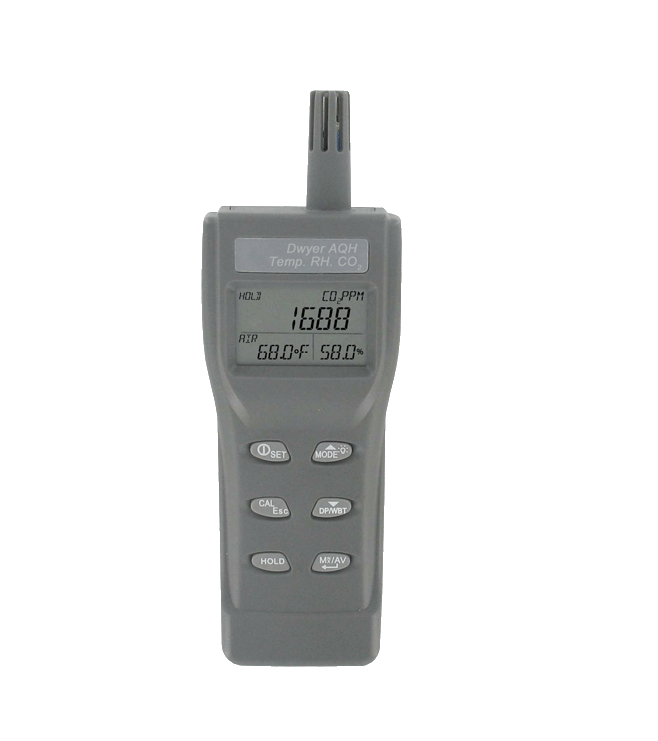

Dwyer AQH-20 | Handheld Indoor Air Quality Meter | CO2 0-2000 ppm, Temperature, RH
The Dwyer AQH-20 handheld meter reads CO2 from 0 to 2000 ppm together with temperature and relative humidity on one backlit LCD. It suits building inspections, ventilation surveys and checks of occupied spaces, with adjustable alarms for selected conditions.
- Non-dispersive infrared CO2 sensor, accuracy +/-30 ppm +/-5% of reading
- Temperature range -10 to 60 °C (14 to 140 °F), resolution 0.1 °
- Relative humidity 0.0 to 99.9% RH, +/-3% RH from 10 to 90%
- Response: CO2 under 30 s, temperature under 2 min, humidity under 10 min
- Runs on four AA batteries (included); carrying case supplied
- About 30 s warm-up; weight 200 g
- Specifications
- Features
- Downloads
| Part Number | AQH-20 |
| Brand | Dwyer |
| Type | Handheld Indoor Air Quality Meter |
| CO2 Range | 0 to 2000 ppm |
| CO2 Accuracy | +/-30 ppm +/-5% of reading |
| CO2 Sensor | Non-dispersive infrared (NDIR) |
| Temperature Range | -10 to 60 °C (14 to 140 °F) |
| Temperature Accuracy | +/-0.6 °C (+/-0.9 °F) |
| Humidity Range | 0.0 to 99.9% RH |
| Humidity Accuracy | +/-3% RH (10 to 90%), +/-5% outside |
| Resolution | CO2 1 ppm; temperature 0.1°; RH 0.1% |
| Operating Conditions | 0 to 50 °C, 0 to 95% RH non-condensing |
| Power | 4 x 1.5 V AA alkaline batteries (included) |
| Weight | 200 g (6.76 oz) |
- Temperature, humidity, and carbon dioxide all in one device.
- A large backlit LCD to improve visibility in low light.
- Alarms that the user can customize to sound when dangerous conditions arise.
