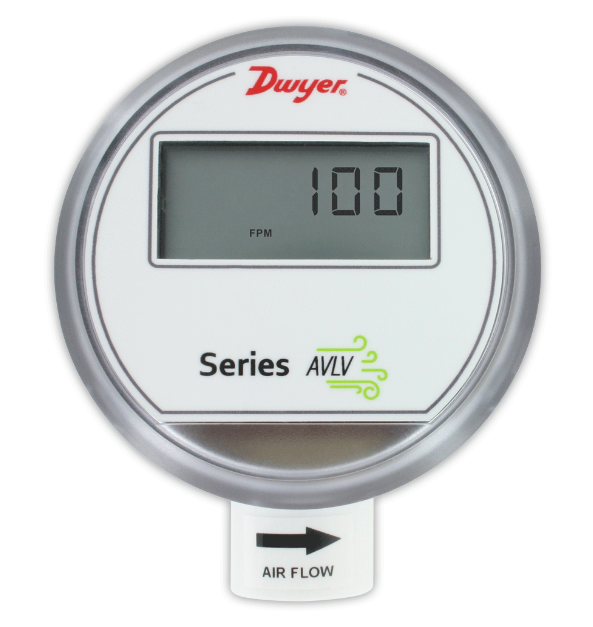

Dwyer Instruments AVLV-1DA1 | Air velocity transmitter | 1% accuracy | Duct mount | Universal current/voltage outputs
The Dwyer AVLV-1DA1 Air Velocity Transmitter is a duct-mount solution designed for accurate airflow monitoring and direct integration with building management systems (BMS). With 1% accuracy, universal current/voltage analog outputs, and four field-selectable velocity ranges, it is suitable for VAV, AHU, and general HVAC airflow control applications.
Request a Quote: Call +971 6 5436933
Part Number: AVLV-1DA1
The Dwyer AVLV-1DA1 is a duct-mount air velocity transmitter built for reliable airflow measurement and straightforward BMS integration. It provides 1% accuracy across field-selectable ranges of 100, 200, 300, or 400 FPM (0.5, 1, 1.5, or 2 m/s), allowing the transmitter to be configured according to the requirements of the HVAC application.
The transmitter features universal current/voltage analog outputs, including 4–20 mA, 0–5 VDC, and 0–10 VDC, making it suitable for controllers and BMS systems that use analog inputs.
Its NEMA 4X (IP66) enclosure provides protection for installation in mechanical rooms and plenum spaces. The unit operates from 32 to 122°F (0–50°C) with 5–95% RH non-condensing humidity tolerance, covering typical duct and HVAC operating conditions.
Response time is approximately 4 seconds under typical conditions and 1 second at constant temperature, supporting standard VAV and AHU control applications. The transmitter operates on 24 VDC or 24 VAC, with a maximum current consumption of 60 mA.
This version does not include an onboard display. Air velocity readings are transmitted to and viewed through the connected BMS or controller. The compact 6.0 oz housing allows convenient installation with a standard duct probe assembly. The AVLV-1DA1 also carries BTL and CE approvals.
If your application requires a local display, the Dwyer AVLV-1DA1-LCD provides the same general transmitter configuration with an integrated LCD display.
Key Benefits
- 1% accuracy for dependable duct air velocity monitoring
- Universal current/voltage analog outputs for BMS integration
- Field-selectable velocity ranges of 100, 200, 300, or 400 FPM
- NEMA 4X (IP66) enclosure for demanding HVAC environments
- Suitable for VAV box and AHU airflow control
- Compact 6.0 oz design for convenient installation
- No onboard display, allowing a streamlined transmitter configuration
- BTL and CE approvals
Who This Product Is Best For
The Dwyer AVLV-1DA1 is suitable for HVAC controls contractors, BMS integrators, building automation professionals, facility managers, and mechanical contractors who require accurate duct air velocity measurement with universal analog outputs.
It is particularly useful for VAV systems, AHUs, mechanical rooms, and building automation applications where airflow information needs to be transmitted directly to a compatible controller.
How to Use
- Mount the AVLV-1DA1 in the duct according to standard probe installation practices.
- Connect the transmitter to a suitable 24 VDC or 24 VAC power supply.
- Connect the universal current/voltage analog output to the compatible BMS or controller.
- Select the required velocity range: 100, 200, 300, or 400 FPM.
- Verify that the transmitted signal is correctly received and displayed by the connected BMS or controller.
Frequently Asked Questions
What accuracy does the Dwyer AVLV-1DA1 provide?
The AVLV-1DA1 provides 1% accuracy across its field-selectable velocity ranges.
What velocity ranges can the AVLV-1DA1 measure?
The transmitter can be configured for 100, 200, 300, or 400 FPM (0.5, 1, 1.5, or 2 m/s).
What outputs does the AVLV-1DA1 provide?
It provides universal analog outputs of 4–20 mA, 0–5 VDC, and 0–10 VDC for connection to compatible controllers and BMS systems.
What is the enclosure rating?
The AVLV-1DA1 has a NEMA 4X (IP66) enclosure rating.
Does the AVLV-1DA1 have an LCD display?
No. The AVLV-1DA1 does not have an onboard display. Measurements are read through the connected BMS or controller. For a display-equipped version, consider the AVLV-1DA1-LCD.
What power supply does the AVLV-1DA1 require?
It operates on 24 VDC or 24 VAC with a maximum current consumption of 60 mA.
Is the AVLV-1DA1 suitable for VAV and AHU applications?
Yes. Its accuracy, selectable velocity ranges, and analog outputs make it suitable for VAV, AHU, and other HVAC airflow control applications.
Does GeneralTech Shop deliver the AVLV-1DA1 across the UAE?
For availability and delivery information, contact GeneralTech Shop at +971 6 5436933.
