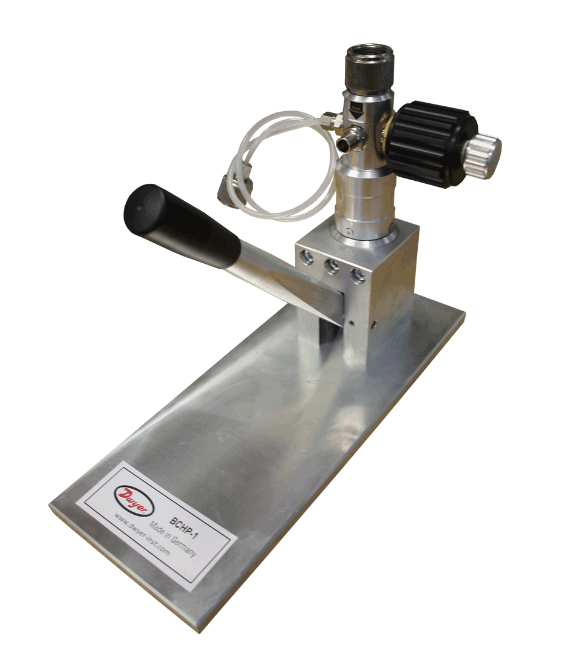

Dwyer Instruments BCHP-KIT | Bench Top Calibration Pump Kit;Includes Pump;Case;and Fine Adjustment Tool
Pressure and vacuum can be produced by the Series BCHP Calibration Test Pump in order to modify or calibrate pressure gauges, transmitters, or switches. Pneumatic pressure range for the hand-operated pump is -28 in Hg to 870 psi (-0.95 bar to 60 bar). Two instruments can be attached to the pump using the dual pressure ports without the need for additional fittings. Both production areas and laboratories can make use of the Series BCHP. This pump's fine adjustment valve guarantees accurate measurements.

Free UAE shipping available
- Specifications
- Features
- Downloads
Connection | Gage: 1/2" female BSP |
Connection | Process: 1/4" female BSP |
Manufacturer | Dwyer Instruments |
Material | Anodized aluminum; brass; and ABS |
Medium | Air |
Output | -28 in Hg to 870 psi (-0.95 to 60 bar). |
Series | BCHP LOW PRESSURE CALIBRATION PUMP |
Type | Calibration Pumps |
Type | Category: Test Equipment |
Weight | 8.4 lb (3.8 kg). |
- Test pump equipped with 1/4" NPT fittings.
- Case and Fine Volume Adjustment Tool.
