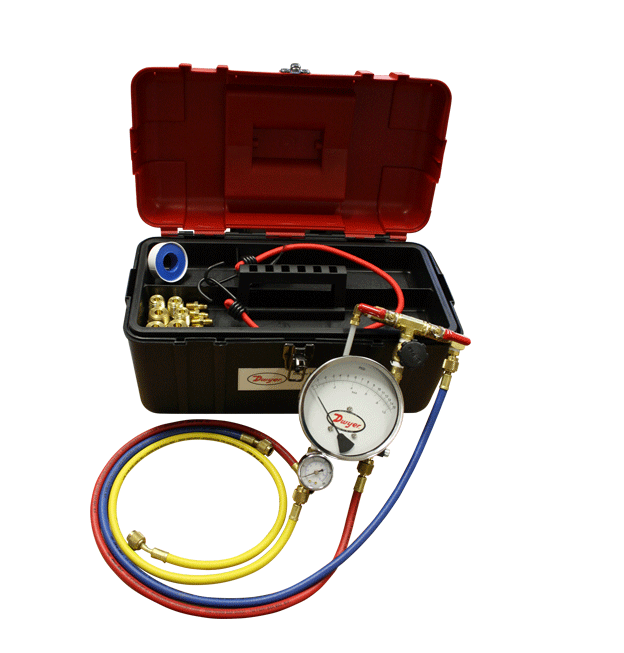

Dwyer BTK2 | Backflow Prevention Test Kit | 0-15 psid & 0-200 psi Gauges
The Dwyer BTK2 is a three-valve test kit for backflow prevention assemblies, used with test procedures recommended by ASSE, AWWA, CSA, FCCC, HR-USV and NEWWA. It combines a 4.5" 0-15 psid differential gauge with a 1.5" 0-200 psi in-line gauge.
- Supplied elastic cord lets the kit be hung and used almost anywhere
- PTFE-lined brass ball valves ease adjustment
- Large needle valve with an easy-grip handle
- Three 3 ft hoses and three sets of brass adapter fittings
- Plumber's tape, bungee cord and polyethylene carry bag included
- 175 psi (12 bar) maximum operating pressure
- Specifications
- Features
- Downloads
| Part Number | BTK2 |
| Brand | Dwyer |
| Differential Gauge | 4.5", 0 to 15 psid (0 to 1 bar), ±2% FS |
| In-line Gauge | 1.5", 0 to 200 psi (0 to 14 bar), ±3-2-3% FS |
| Maximum Operating Pressure | 175 psi (12 bar) |
| Maximum Operating Temperature | 210°F (99°C) |
| Valves | Three; PTFE-lined brass ball valves and brass needle valve |
| Hoses | Three 3 ft rubber hoses |
| Gauge Materials | 4.5": anodised aluminium, Buna-N diaphragm; 1.5": brass |
| Fittings | Brass couplings and adaptors |
| Weight | 8.9 lb (4 kg) |
- Broad Testing Capability: The BTK2 can test several kinds of backflow prevention assemblies, such as pressure vacuum breakers (PVB), reduced pressure zone assemblies (RPZA), and double check valve assemblies (DCVA).
- Sturdy Construction: The test kit is made of premium components that guarantee lifespan and durability, making it appropriate for frequent usage in the field.
- Accurate Gauges: To guarantee accurate measurements during testing, the kit comes with high-accuracy differential pressure gauges.
- Flexible Hoses: Color-coded flexible hoses make it simple to identify and connect them, which streamlines the testing procedure.
- User-Friendly Design: Even for individuals who are unfamiliar with backflow testing, the kit's simple operation and clear instructions make it easy to use.
