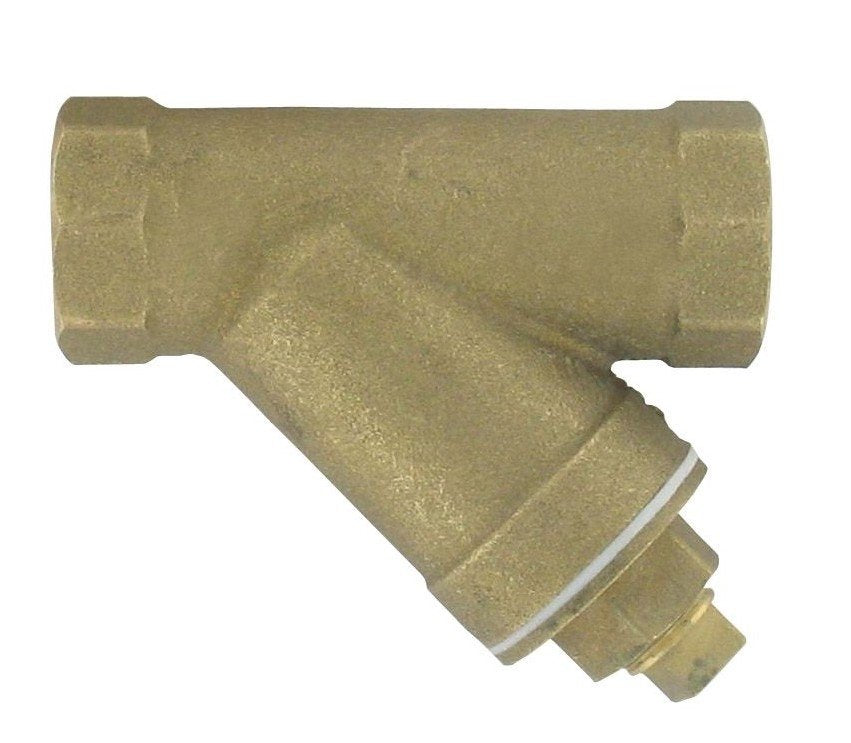

Dwyer Instruments BYS-02 | 1/2" pipe size | 400 psi maximum pressure
Use of the economical Model BYS-02 Brass Y-Strainers in any kind of industrial application is recommended. Several applications are made possible by the adaptable Y design and large selection of sizes. High-grade brass is used to make the body, cap, and plug to assure dependability. To guarantee a lengthy service life, the seal is made of PTFE. Stainless steel strainers offer superior filtration without compromising high flow characteristics, helping to shield valves, meters, and other components from corrosion and dirt.

Free UAE shipping available
- Specifications
- Features
- Downloads
End connection | Female NPT |
Manufacturer | Dwyer Instruments |
Material | "Wetted: Valve Body: Cast brass; Cap and Plug: Brass; Screen: SS; Seal: PTFE" |
Material | Brass |
Max. Pressure | 400 psi |
Maximum operating temperature | -10 to 250°F (-23 to 121°C) |
Product Composition | Metallic |
Rating | Exposure: Industrial |
Series | Family: Dwyer Instruments Fittings, BYS Series |
Size | Pipe: 1/2" |
- The Series BYS Brass Y-Strainers offer a cost-effective option for industrial applications, providing efficient filtration at a reasonable price point.
- With a versatile Y configuration and availability in a wide range of sizes, these Y-strainers can be used in various industrial settings, offering flexibility in application.
- The body, cap, and plug are made from high-quality brass, ensuring durability and reliability in demanding environments.
- The seal is constructed of PTFE (polytetrafluoroethylene), ensuring a long service life and resistance to corrosion and wear.
- Equipped with a stainless steel strainer, these Y-strainers provide excellent filtration, preventing damage to valves, meters, and other equipment from rust and dirt particles, while maintaining high flow characteristics.
- The strainer helps prevent damage to downstream equipment, enhancing the longevity and performance of the overall system.
- Despite providing effective filtration, these Y-strainers maintain high flow characteristics, ensuring efficient fluid movement through the system.
