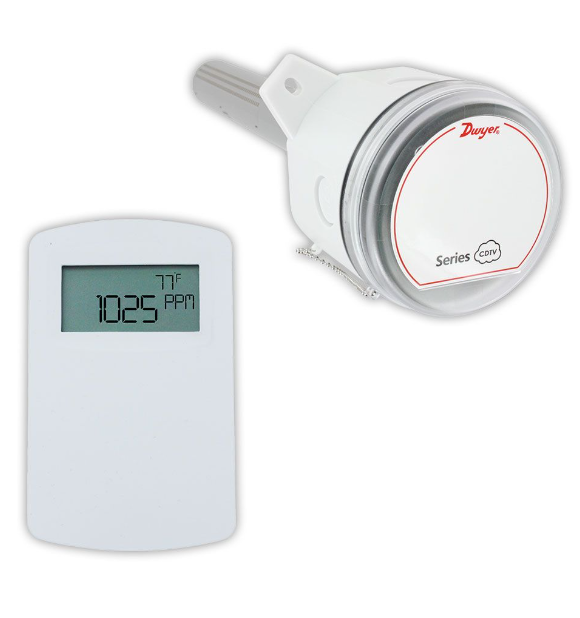

Dwyer Instruments CDTV-2D404 | Duct VOC & CO2 transmitter | Universal analog outputs | 2000PPM CO2 | No temperature

Name: Dwyer Instruments CDTV-2D404 | Duct VOC & CO2 transmitter | Universal analog outputs | 2000PPM CO2 | No temperature
Brand: Dwyer
SKU: CDTV-2D404
Availability: OutOfStock

Part Number : CDTV-2D404

A carbon dioxide/volatile organic compound (VOC) transmitter, the Series CDTV, Model CDTV-2D404 lowers energy costs in buildings by adjusting the amount of conditioned air according to the occupancy of the space. The transmitter can identify vapors that might need to be expelled during times of lesser occupancy by detecting both CO2 and VOC.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Accuracy	CO2: +/-40 ppm +/-3% of reading
Approvals	CE
Enclosure Rating	Duct mount: NEMA 4X (IP66) for housing only Wall mount: IP20
Manufacturer	Dwyer Instruments
Maximum operating temperature	32 to 122°F (0 to 50°C)
Non Linearity	CO2: 16 ppm
Output	Current: 0 to 20 mA, 4 to 20 mA, 0 to 10 mA, or 2 to 10 mA (depending on selection jumper, max 500 O) Voltage: 0 to 10 VDC, 2 to 10 VDC, 0 to 5 VDC, or 1 to 5 VDC (depending on selection jumper, min 500 O) Relay: SPST NO 2A @ 30 VDC
POWER CONSUMPTION	Average: 2 watts Peak: 3.75 watts
Power	16 to 35 VDC / 19 to 28 VAC
PRESSURE	Dependence: CO2: 0.13% of reading per mm of Hg
Range	CO2: 0 to 2000 or 0 to 5000 ppm (depending on model) VOC: 0 to 2000 ppm CO2 equivalent
Range	Duct Air Velocity: 0-4000 FPM (20.32 m/s)
Response Time	CO2: 2 minutes for 99% step change; VOC: 5 minutes
Sensor Type	CO2: Single-beam, dual-wavelength NDIR; VOC: MEMS metal oxide semiconductor
Temperature	Dependence: +/-8 ppm / °C at 1100 ppm
Type	Carbon Dioxide/Volatile Organic Compound Transmitter
Weight	5.6 oz (158.8 g)

Combination CO2 and VOC outputs lower material and labor costs.
Single beam dual wavelength NDIR CO2 sensor allows for usage in locations that may be used 24 hours a day.
There is a correlation between VOC emission and CO2 measurements.
Utilize ASHRE's occupancy-based VRP Algorithm for ventilation.

Dwyer Instruments CDTV-2D404 | Duct VOC & CO2 transmitter | Universal analog outputs | 2000PPM CO2 | No temperature

DOWNLOAD CATALOG

Dwyer Instruments CDTV-2D404 | Duct VOC & CO2 transmitter | Universal analog outputs | 2000PPM CO2 | No temperature

Dwyer Instruments CMS300-FC | Carbon monoxide transmitter & switch | 0-300 PPM | 4-20 mA/2-10 V (maximum load 2K Ω) | Includes factory calibration certificate

Dwyer Instruments CMS300 | Carbon monoxide transmitter & switch | 0-300 PPM | 4-20 mA/2-10 V (maximum load 2K Ω)

Dwyer Instruments GSTC-N-LCD-FC | Nitrogen Dioxide duct mount transmitter with BACnet & Modbus® communication | LCD display | Includes factory calibration certificate

Dwyer Instruments GSTC-N-LCD | Nitrogen Dioxide Transmitter with BACnet & Modbus Communication with Integral LCD Display

Dwyer Instruments GSTC-N-FC | Nitrogen Dioxide transmitter with BACnet & Modbus® communication | Includes factory calibration certificate

Dwyer Instruments GSTC-N-D-FC | Nitrogen Dioxide duct mount transmitter with BACnet & Modbus® communication | Includes factory calibration certificate

Dwyer Instruments GSTC-N-D | Nitrogen Dioxide Duct Mount Transmitter with BACnet & Modbus Communication

Dwyer Instruments GSTC-N | Nitrogen Dioxide Transmitter with BACnet & Modbus Communication

Meet Us F2F

Chicago Pneumatic CP3349-SALAVET Vertical grinders

Chicago Pneumatic CP8848-2 Pack US 1/2 Cordless impact wrenches Cordless electric tools 68-950NM

Chicago Pneumatic CP8848-2 1/2 Cordless impact wrenches Cordless electric tools 68-950NM

Sauermann Si-CA 230 Multigas Industrial Gas Analyser (Choice Of Kit)

Country/Region

Dwyer Instruments CDTV-2D404 | Duct VOC & CO2 transmitter | Universal analog outputs | 2000PPM CO2 | No temperature

Related Products

Dwyer Instruments CMS300-FC | Carbon monoxide transmitter & switch | 0-300 PPM | 4-20 mA/2-10 V (maximum load 2K Ω) | Includes factory calibration certificate

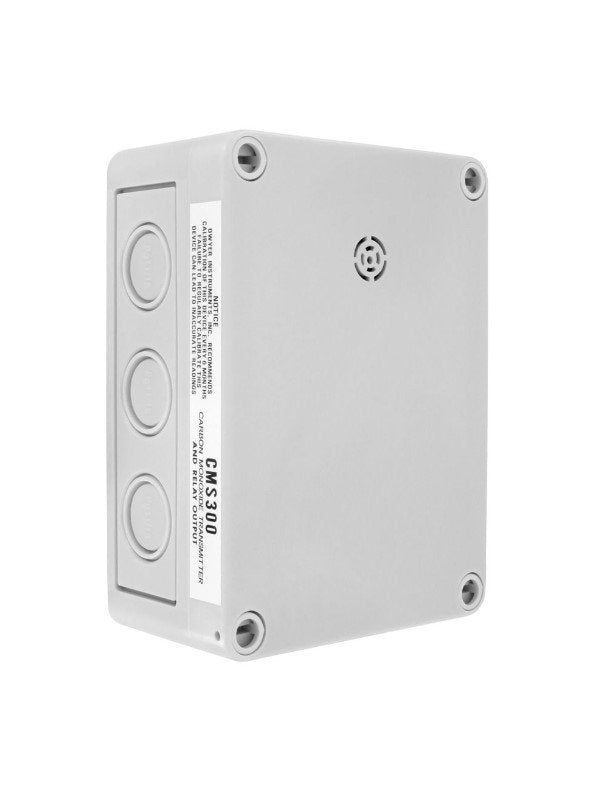

Dwyer Instruments CMS300 | Carbon monoxide transmitter & switch | 0-300 PPM | 4-20 mA/2-10 V (maximum load 2K Ω)

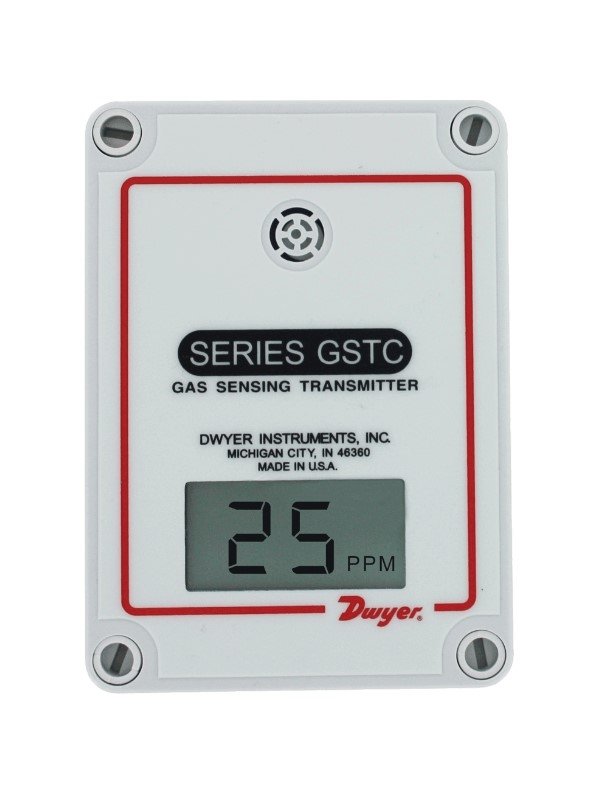

Dwyer Instruments GSTC-N-LCD-FC | Nitrogen Dioxide duct mount transmitter with BACnet & Modbus® communication | LCD display | Includes factory calibration certificate
