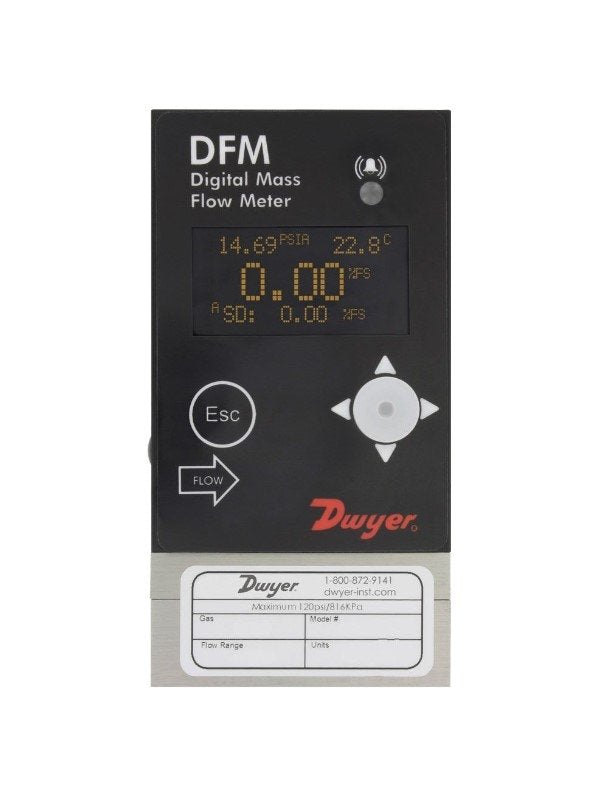

Dwyer DFM-48010-V-ALA2 | Digital Flow Meter | 0-10 l/min, 1/8" Fittings, RS-232/485
Part Number : DFM-48010-V-ALA2
Dwyer DFM-48010-V-ALA2 digital flow meter: 0-10 l/min gas flow measurement, 1/8" compression fittings, and an OLED/joystick interface that supports up to 30 gases while showing mass flow, volumetric flow, pressure and temperature.
- 0-5 VDC analogue output; RS-232 digital interface, RS-485 selectable; rated ±(0.5% of reading + 0.2% of full scale)
- 316 SS and 416 SS wetted parts with FKM O-rings; operating limits: 120 psig, 14 to 140°F
- NIST traceable certification included; relay output: programmable solid state
- Repeatability ±0.15% FS, response 10 ms; 9-26 VDC power input
