Part Number : DFM-56100-V-DLA2

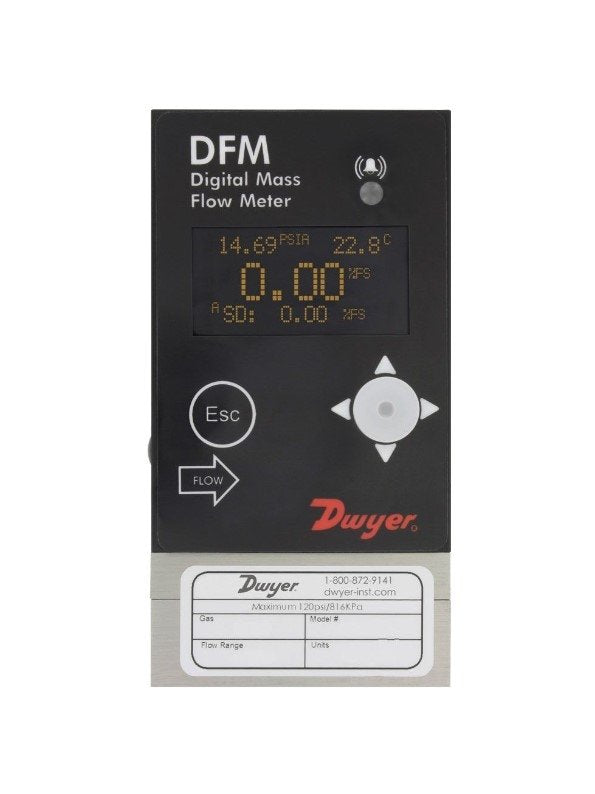

The industry standard for measuring process gas mass and volumetric flow rates is the Model DFM-56100-V-DLA2 Digital Flow Meter. The flowmeter has a 30-gas maximum measurement range using the OLED/joystick interface. Displaying mass flow, volumetric flow, pressure, and temperature information simultaneously encourages applications in numerous sectors. Certified NIST traceable as well.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Accuracy	+/-(0.5% of reading + 0.2% FS)
Approvals	CE
Connection	Process: 3/8" for ¢°¤ 100 L/min
Display	2 x 16 character OLED (model selectable)
Leak Integrity	1 x 10-9 sccs of helium
Manufacturer	Dwyer Instruments
Material	Wetted: 316 SS, 416 SS, high temperature polyamide, alumina ceramic, epoxy, silicone, glass, gold. FKM O-rings
Maximum Operating Pressure	120 psig (8.27 bar)
Maximum operating temperature	14 to 140°F (-10 to 60°C)
Maximum Particulate Size	20 microns
Output	0-5 VDC, 0-10 VDC and 4-20 mA
Power Supply	9-26 VDC
Relay	Rating: Programmable solid state relay
Repeatability	+/-0.15% FS
Response Time	10 ms
Type	Digital Flow Meter
Weight	DFM-01/50: 0.85 lbs (0.4 kg); DFM-51/56: 1.15 lbs (0.52 kg)

Reaction time of less than 20 ms.
Multi-parameter capabilities.
Multi-gas capability.
Able to hold 20 personalized gas mixtures and up to 90 gases.
Configurable field.
Adjustable results.
For mass flow, temperature, and pressure, there are predefined action delays for high, low, and in-range alarms.
