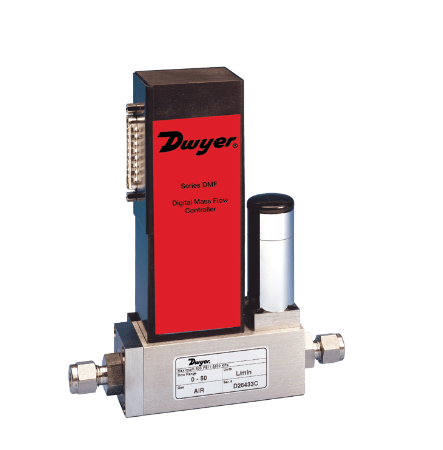

Dwyer DMF-41404 | Digital Mass Flow Controller | 0-100 sccm N2, 1/4" Fitting, RS-485
Part Number : DMF-41404
Ranged 0-100 sccm for nitrogen at 21°C and 760 mm Hg, the Dwyer DMF-41404 digital mass flow controller programs, logs and regulates gas flow using a straight tube sensor and restrictor flow element.
- 1/4" compression fitting; 0-100 sccm full scale
- Control functions include flow set point, totalising and auto zero; auto zero balancing circuit limits zero and span drift
- Two dry contacts for switching valves or pumps; RS-485 interface; 0-5 VDC or 0-10 VDC linear output
- ±1% FS accuracy incl. linearity; ±0.15% FS repeatability; 316/416 SS wetted parts, fluoroelastomer O-rings; 500 psig max
