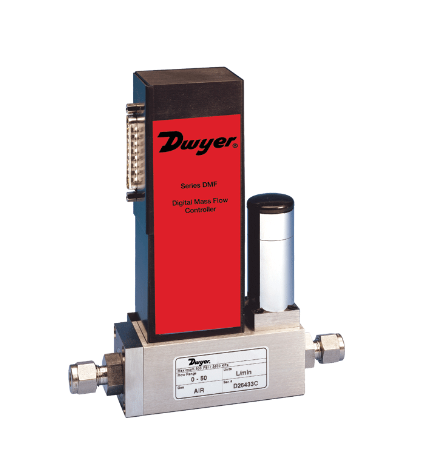

Dwyer DMF-41405 | Digital Mass Flow Controller | 0-200 sccm N2, 1/4" Fitting, RS-485
Part Number : DMF-41405
The Dwyer DMF-41405 regulates gas flow up to 0-200 sccm (equivalent nitrogen flow at 70°F and 760 mm Hg). Built with a straight tube sensor and restrictor element, this 0-200 sccm Series DMF unit keeps gas flow laminar.
- 1/4" compression fitting; 0-200 sccm full scale
- Set point, totaliser and stop/preset total functions; auto zero balancing circuit limits zero and span drift
- Dry contact closures (2) for process equipment; RS-485 interface; 0-5 VDC or 0-10 VDC linear output
- Repeatability ±0.15% of full scale; 316/416 SS wetted parts, fluoroelastomer O-rings; 500 psig max
Free UAE shipping available
For pricing, please contact our experts.
