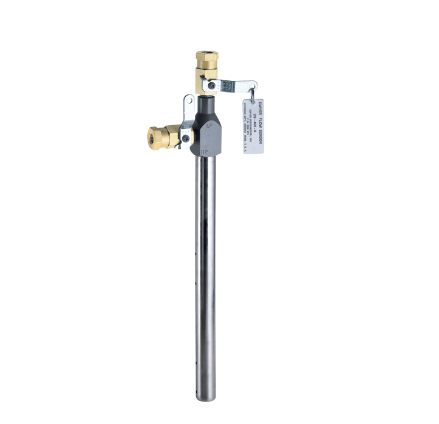

Dwyer DS-400-16-LV | Averaging Pitot Flow Sensor | 16" Pipe, Without Valves
Part Number : DS-400-16-LV
The Dwyer DS-400-16-LV is a Series DS-400 in-line averaging Pitot tube flow sensor for 16" schedule 40 pipe, supplied without valves. Paired with a differential pressure gauge of suitable range, the DS-400-16-LV senses the flow rate of compatible gases and liquids.
- 16" pipe size for the Series DS-400 — version without valves
- DS-400-16-LV mounts with the included 3/4" male NPT compression fitting, which sets the insertion length
- Two 1/8" female NPT x 1/4" SAE 45° flared adapters included with the DS-400-16-LV, compatible with the hoses in the A-471 Portable Capsuhelic Gauge Kit
- 304 SS sensor tube with brass compression fitting (DS-400-16-LV)
- DS-400-16-LV rated to 200 psig (13.78 bar) at 200°F (93.3°C)
