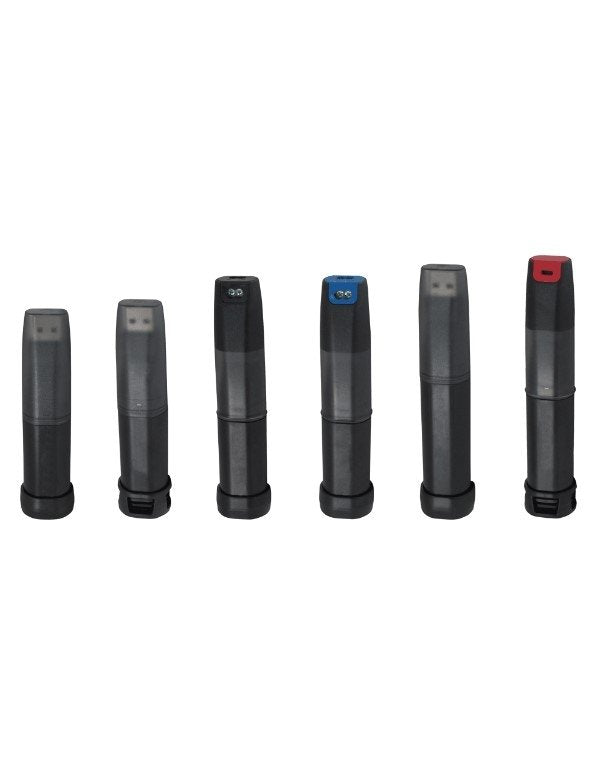

Dwyer DW-USB-1 | Compact USB Data Logger | Temperature
The Dwyer DW-USB-1 is a compact USB data logger for temperature input that plugs straight into a PC's USB port to download its records. Memory on the DW-USB-1 holds 16,382 readings, with sampling set from 10 s to 12 h.
- 16,382 readings memory, sampling 10 s to 12 h
- LEDs show alarm and low-battery status
- IP67 moisture protection with the cover fastened
- Software sets units, high/low alarms, start time and sampling rate
- 3.6 V 1/2 AA lithium battery, user replaceable
- Specifications
- Features
- Downloads
| Part Number | DW-USB-1 |
| Brand | Dwyer |
| Input | Temperature |
| Memory | 16,382 readings |
| Sampling Rate | 10 s to 12 h |
| Sampling Methods | Stop on memory full |
| Alarm | Programmable high/low |
| Interface | USB port |
| Housing | ABS plastic blend |
| Power | 3.6 V 1/2 AA lithium battery, user replaceable |
| Approvals | CE |
| Weight | 1.5 oz (43 g) |
- Fulfills IP67 requirements when the protective cap is used.
- The all-in-one device connects to a PC without a cord.
- For visual verification, use LED status indicators.
- An integrated LCD display is optional for local indication.
