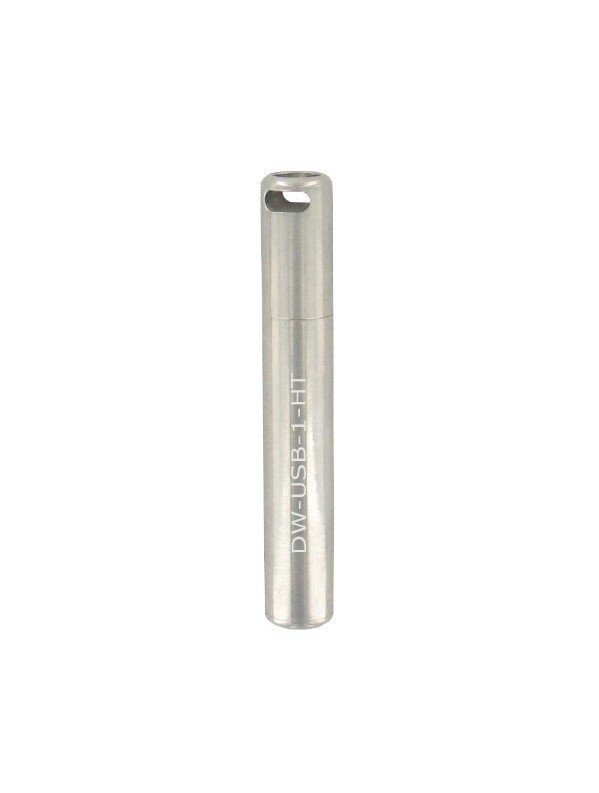

Dwyer DW-USB-1-HT | High Temperature USB Data Logger | -40 to 257°F (-40 to 125°C)
The Dwyer DW-USB-1-HT is a high temperature USB data logger that tracks temperatures up to 257°F (125°C). Its stainless steel housing shields the sensor from corrosion, damage and water ingress.
- Range -40 to 257°F (-40 to 125°C), ±1°F accuracy
- 316 SS housing rated IP67/NEMA 4X
- 32,510-reading memory, sampling from 1 s to 12 h
- 3.6 V 2/3 AA lithium battery, roughly 1 to 3 years life
- Windows 7, 8 and 10 compatible
- Specifications
- Features
- Downloads
| Part Number | DW-USB-1-HT |
| Brand | Dwyer |
| Range | -40 to 257°F (-40 to 125°C) |
| Accuracy | ±1°F (±0.5°C) |
| Resolution | 0.2°F (0.1°C) |
| Memory | 32,510 readings |
| Sampling Rate | 1 s to 12 h |
| Sampling Methods | Continuous or stop on memory full |
| Housing | 316 SS |
| Enclosure Rating | IP67/NEMA 4X |
| Interface | USB port |
| Power | 3.6 V 2/3 AA lithium battery, approx. 1 to 3 years |
| Approvals | CE, RoHS |
| Weight | 4.6 oz (130.4 g) |
- Configuration program that is simple to use.
- 316 SS casing with an integrated USB plug.
