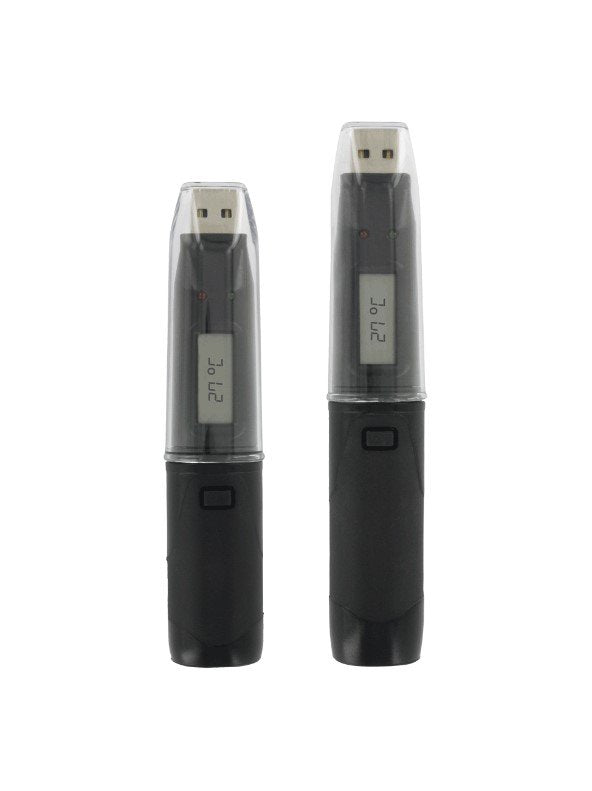

Dwyer DW-USB-1-LCD | Compact USB Data Logger | Temperature, LCD
The Dwyer DW-USB-1-LCD logs temperature in a small housing that is IP67 protected with its cover fastened, then transfers data through a USB port. Current values can be read on the logger display itself. The DW-USB-1-LCD keeps 16,382 readings and samples at 10 s to 12 h intervals.
- Readings visible on a 2.5-digit LCD
- Holds 16,382 readings at 10 s to 12 h sampling
- Configurable alarms, start time and sampling via PC software
- Powered by a 3.6 V 1/2 AA lithium battery
- Alarm and low-battery LED indication
- IP67 with protective cover in place
- Specifications
- Features
- Downloads
| Part Number | DW-USB-1-LCD |
| Brand | Dwyer |
| Input | Temperature |
| Resolution | 1°F (0.5°C); 0.5% RH |
| Display | 2.5-digit LCD |
| Memory | 16,382 readings |
| Sampling Rate | 10 s to 12 h |
| Sampling Methods | Continuous with data rollover |
| Alarm | Programmable high/low |
| Interface | USB port |
| Housing | ABS plastic blend |
| Power | 3.6 V 1/2 AA lithium battery, user replaceable |
| Approvals | CE, RoHS |
| Weight | 1.6 oz (45.4 g) |
- Enables monitoring of temperature, humidity, dew point, voltage, current, or carbon monoxide, offering versatility for various applications.
- Allows for easy data download by directly plugging the module into a PC's USB port, simplifying data retrieval.
- Features a compact housing for portability and convenience, making it suitable for use almost anywhere.
- Resists moisture up to IP67 when the protective cap is attached, ensuring durability in challenging environments.
- Users can set sampling rate, start time, high/low alarms, and temperature unit using the included Windows®-based software, allowing for tailored monitoring.
- Capable of storing data for later analysis, facilitating trend analysis and historical reference.
- Suitable for a wide range of applications due to its ability to monitor multiple parameters and its compact design.
