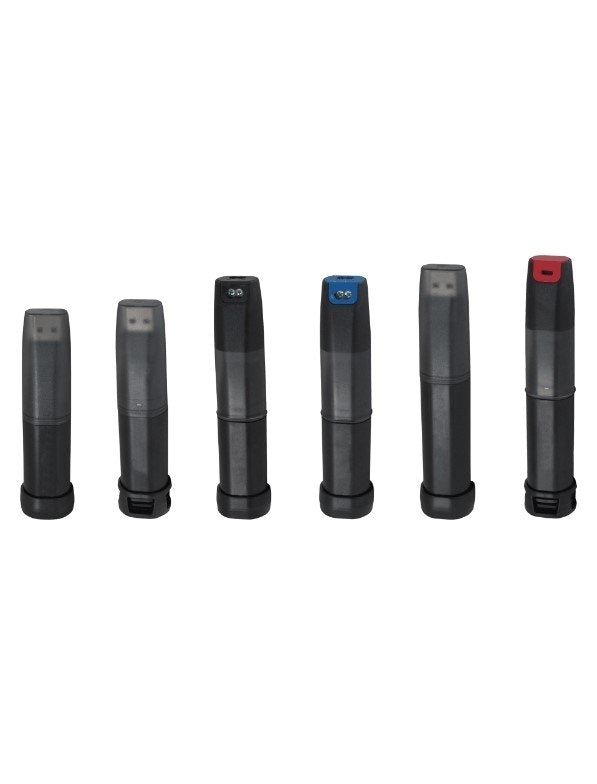

Dwyer DW-USB-2-HA | Compact USB Data Logger | High Accuracy Temp/RH/Dew Point
The Dwyer DW-USB-2-HA is a compact USB data logger for high accuracy temperature, humidity and dew point input that plugs straight into a PC's USB port to download its records. Sampling on this high accuracy temperature, humidity and dew point logger runs from 10 s to 12 h, storing 16,382 readings each (temperature and RH).
- Logs 16,382 readings each (temperature and RH) with a 10 s to 12 h interval
- Built-in LEDs signal alarms and low battery; withstands moisture to IP67 when the cap is secured
- High/low alarms, start time and sample rate set in software; replaceable 3.6 V 1/2 AA lithium cell
- Specifications
- Features
- Downloads
| Part Number | DW-USB-2-HA |
| Brand | Dwyer |
| Input | High accuracy temperature, humidity and dew point |
| Memory | 16,382 readings each (temperature and RH) |
| Sampling Rate | 10 s to 12 h |
| Alarm | Programmable high/low |
| Interface | USB port |
| Housing | ABS plastic blend |
| Power | 3.6 V 1/2 AA lithium battery, user replaceable |
| Approvals | CE |
| Weight | 1.5 oz (43 g) |
- Fulfills IP67 requirements when the protective cap is used.
- The all-in-one device connects to a PC without a cord.
- For visual verification, use LED status indicators.
- An integrated LCD display is optional for local indication.
