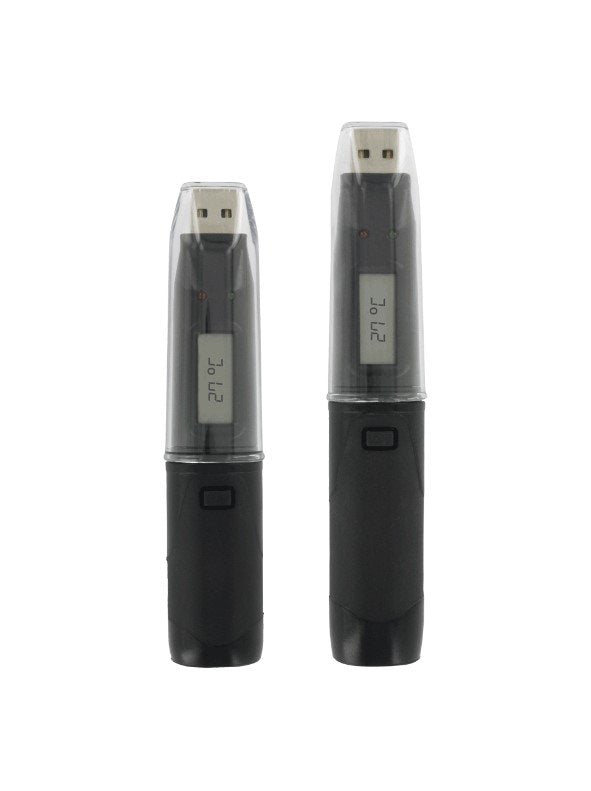

Dwyer Instruments DW-USB-2-HA-LCD | Compact USB data logger | High accuracy temperature/humidity/dew point input, with LCD
By simply connecting the Series DW-USB-2-HA-LCD Compact USB Data Logger module into a PC's USB port, users may download recorded data and monitor temperature, humidity, dew point, voltage, current, and carbon monoxide virtually anywhere. The small housing features integrated LEDs to show when an alarm has been triggered or when the battery is low, and it can withstand dampness up to IP67 when the protective cover is fastened. The sampling rate, start time, high/low alerts, and temperature unit can all be adjusted by users using the Windows® based software that is offered.
- Specifications
- Features
- Downloads
| Accuracy | Temperature +/-0.6°F (+/-0.3°C) Humidity +/-2.0% |
| Alarm | Programmable high/low |
| Approvals | CE, RoHS |
| Display | 2.5 digit LCD |
| Housing | ABS plastic blend |
| Interface | USB port |
| Manufacturer | Dwyer Instruments |
| MEMORY SIZE | Thermocouple models: 32510 readings; Temperature/humidity models: 16382 readings |
| Power | 3.6 V 1/2 AA lithium metal battery, included, user-replaceable |
| Range | Temperature: -31 to 176° F (-35 to 80°C) Humidity: 0 to 100% RH |
| Resolution | Temperature: 1°F (0.5°C) Humidity: 0.5% RH. |
| Sampling Methods | Continuous with data rollover |
| Sampling Rate | Selectable from 10 seconds to 12 hours for temperature/humidity models; 1 second to 12 hours for thermocouple models |
| System Requirements | Windows® 2000, Windows® XP, Windows® 7, Windows VISTA® 32-bit or 64-bit operating systems. |
| Weight | Temperature/humidity models 1.6 oz (45.4 g) Thermocouple models 1.8 oz (51 g). |
- Enables monitoring of temperature, humidity, dew point, voltage, current, or carbon monoxide, offering versatility for various applications.
- Allows for easy data download by directly plugging the module into a PC's USB port, simplifying data retrieval.
- Features a compact housing for portability and convenience, making it suitable for use almost anywhere.
- Resists moisture up to IP67 when the protective cap is attached, ensuring durability in challenging environments.
- Users can set sampling rate, start time, high/low alarms, and temperature unit using the included Windows®-based software, allowing for tailored monitoring.
- Capable of storing data for later analysis, facilitating trend analysis and historical reference.
- Suitable for a wide range of applications due to its ability to monitor multiple parameters and its compact design.
