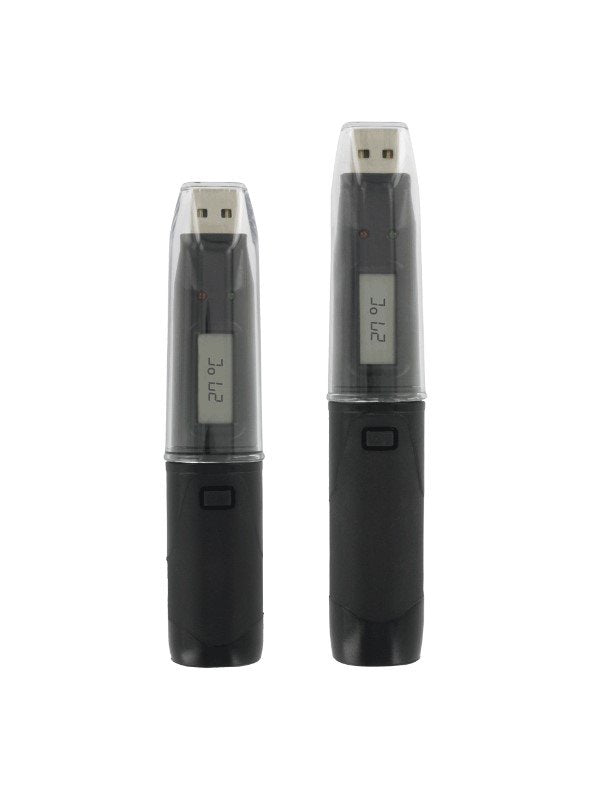

Dwyer DW-USB-2-LCD | Compact USB Data Logger | Temp/RH/Dew Point, LCD
The Dwyer DW-USB-2-LCD logs temperature, humidity and dew point in a small housing that is IP67 protected with its cover fastened, then transfers data through a USB port. An LCD lets users check values in the field. Memory on the DW-USB-2-LCD holds 16,382 readings, with sampling set from 10 s to 12 h.
- Built-in 2.5-digit LCD
- Stores 16,382 readings; sample interval 10 s to 12 h
- Accuracy: ±1°F (±0.5°C); RH ±3.0%
- Range: -31 to 176°F (-35 to 80°C); 0 to 100% RH
- Software sets units, high/low alarms, start time and sampling rate; 3.6 V 1/2 AA lithium battery, user replaceable
- LEDs show alarm and low-battery status; IP67 moisture protection with the cover fastened
- Specifications
- Features
- Downloads
| Part Number | DW-USB-2-LCD |
| Brand | Dwyer |
| Input | Temperature, humidity and dew point |
| Range | -31 to 176°F (-35 to 80°C); 0 to 100% RH |
| Accuracy | ±1°F (±0.5°C); RH ±3.0% |
| Resolution | 1°F (0.5°C); 0.5% RH |
| Display | 2.5-digit LCD |
| Memory | 16,382 readings |
| Sampling Rate | 10 s to 12 h |
| Sampling Methods | Continuous with data rollover |
| Alarm | Programmable high/low |
| Interface | USB port |
| Housing | ABS plastic blend |
| Power | 3.6 V 1/2 AA lithium battery, user replaceable |
- Enables monitoring of temperature, humidity, dew point, voltage, current, or carbon monoxide, offering versatility for various applications.
- Allows for easy data download by directly plugging the module into a PC's USB port, simplifying data retrieval.
- Features a compact housing for portability and convenience, making it suitable for use almost anywhere.
- Resists moisture up to IP67 when the protective cap is attached, ensuring durability in challenging environments.
- Users can set sampling rate, start time, high/low alarms, and temperature unit using the included Windows®-based software, allowing for tailored monitoring.
- Capable of storing data for later analysis, facilitating trend analysis and historical reference.
- Suitable for a wide range of applications due to its ability to monitor multiple parameters and its compact design.
