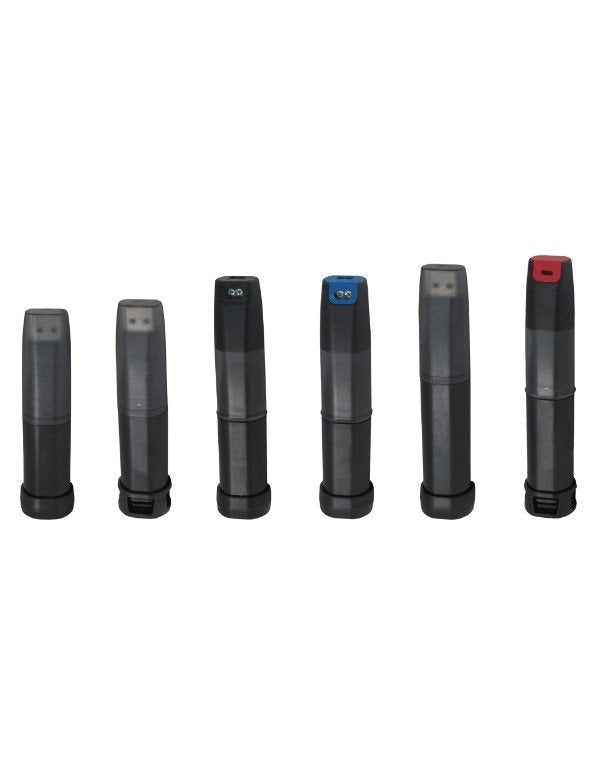

Dwyer DW-USB-5 | Compact USB Data Logger | Carbon Monoxide
Built for carbon monoxide logging, the Dwyer DW-USB-5 compact USB data logger records on its own and downloads by plugging into a computer's USB port. Memory on the DW-USB-5 holds 32,510 readings, with sampling set from 10 s to 5 min.
- Capacity 32,510 readings, sampled every 10 s to 5 min
- IP67 moisture protection with the cover fastened; software sets units, high/low alarms, start time and sampling rate
- 3.6 V 1/2 AA lithium battery, user replaceable; LEDs show alarm and low-battery status
- Specifications
- Features
- Downloads
| Part Number | DW-USB-5 |
| Brand | Dwyer |
| Input | Carbon monoxide |
| Memory | 32,510 readings |
| Sampling Rate | 10 s to 5 min |
| Alarm | Programmable high/low |
| Interface | USB port |
| Housing | ABS plastic blend |
| Power | 3.6 V 1/2 AA lithium battery, user replaceable |
| Approvals | CE |
| Weight | 1.5 oz (43 g) |
- Fulfills IP67 requirements when the protective cap is used.
- The all-in-one device connects to a PC without a cord.
- For visual verification, use LED status indicators.
- An integrated LCD display is optional for local indication.
