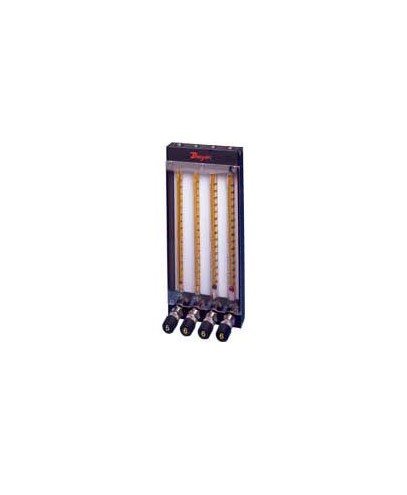

Dwyer Instruments FT-253 | 150 mm direct reading flow tube | Max. flow rate 50.0 SCFH air | Glass float

Name: Dwyer Instruments FT-253 | 150 mm direct reading flow tube | Max. flow rate 50.0 SCFH air | Glass float
Brand: Dwyer
SKU: FT-253
Availability: OutOfStock

Part Number : FT-253

Adapt flow systems to the needs of your applications. Up to six distinct flow tubes with varying flow capacity and patterns can be added to a system. Applications involving multichannel metering, mixing, or monitoring are perfect for the Series MTF Multitube Flow Systems.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Accuracy	Correlated Flow Tubes: +/- 2% FS @ 70 deg F (21.1 deg C) and 14.7 psia (1 atm absolute) Direct Reading Flow Tubes: +/- 5% FS @ 70 deg F (21.1 deg C) and 14.7 psia (1 atm absolute).
Connection	1/8" female NPT
End Fitting	Anodized Aluminum or 316 stainless steel
Float Stops	PTFE
Float	316 stainless steel or black glass as indicated
Flowtube	Borosilicate glass
Front Shield	Polycarbonate
Manufacturer	Dwyer Instruments
Max Flow Rate	Air: 50.0 SCFH
Maximum Operating Pressure	200 psig (13.8 bar)
Maximum operating temperature	250°F (121°C)
Mounting	Vertical
O rings	Buna-N on aluminum models and Fluoroelastomer on stainless steel models
Ratio	Turn-down: 10:1, 20:1 with combinations of two floats installed in meter
Repeatability	+/-0.25% of scale reading
Scale	Universal 65 mm or 150 mm scales with correlation charts
Side Panels	Black, anodized aluminum
Turn-down Ratio	10:1, 20:1 with combinations of two floats installed in meter
Wetted Parts	6-turn Valves: For Aluminum Frames: aluminum body, 316 SS spindle, Acetal orifice, Buna-N o-rings For 316 SS Frames: 316 SS body, 316 SS spindle, PCTFE orifice, fluoroelastomer o-rings. 16-turn Valves: For Aluminum Frames: brass body, 316 SS spindle, PCTFE orifice, Buna-N o-rings For 316 SS Frames: 316 SS body, 316 SS spindle, PCTFE orifice, fluoroelastomer o-rings.

Systems can have their functionality and design altered to match the needs of a particular application.
Ability to hold up to six distinct flow tubes, offering flexibility in flow patterns and capacity to meet diverse requirements.
The exact control and monitoring of fluid flow rates is made possible by the variable flow capacities that each flow tube can have.
Perfect for multichannel uses including mixing, metering, or monitoring; offers a complete solution for intricate fluid handling procedures.
Has a modular architecture that facilitates simple assembly and reconfiguration of the system in response to shifting needs or preferences.
Ideal for a variety of uses necessitating specialized flow systems, such as research applications, laboratory tests, and industrial operations.
Built with sturdy materials to guarantee lifespan and dependability under varied working circumstances.
