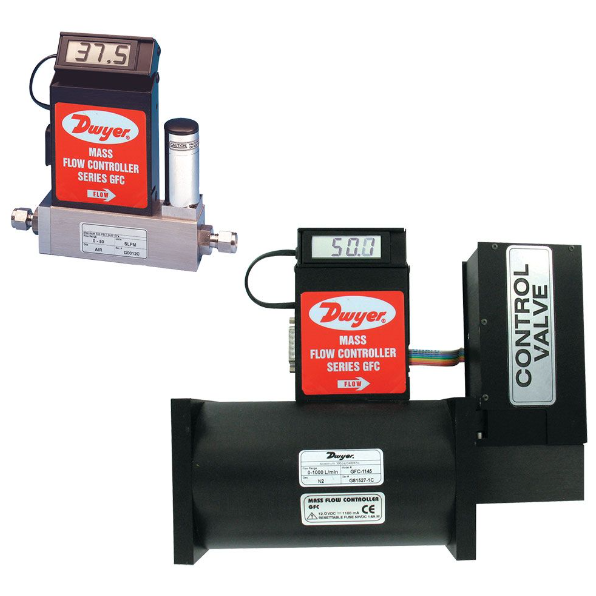

Dwyer GFC-2144 | Gas Mass Flow Controller | 0-500 L/min N2, 1/2" compression
Part Number : GFC-2144
Sized for 0-500 L/min of flow, referenced to nitrogen at 21°C, 760 mm Hg, the Dwyer GFC-2144 gas mass flow controller connects through a 1/2" compression fitting. Inside the GFC-2144, a restrictor flow element works with a straight-tube sensor, and the unit returns linear 0-5 VDC and 4-20 mA signals.
- Operates at 0 to 50°C from ±12 VDC (GFC-2144)
- GFC-2144 accuracy ±1.5% FS (5 to 25°C, 5 to 60 psia), repeatability ±0.25% FS
- Response of the GFC-2144: 2 s to within ±2% of actual flow, shown on a tiltable 3-1/2 digit LCD
- GFC-2144 pressure limit: 500 psig (34.5 bar)
- Wetted parts of the GFC-2144: 316 SS with fluoroelastomer O-rings
Free UAE shipping available
For pricing, please contact our experts.
