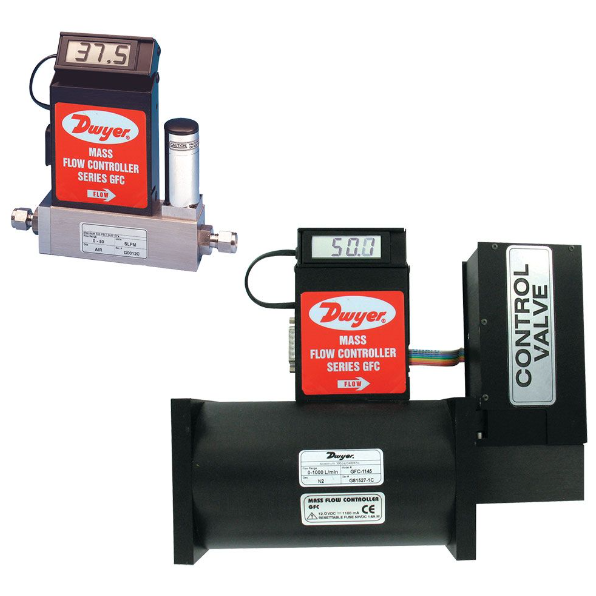

Dwyer GFC-2145 | Gas Mass Flow Controller | 0-1000 L/min N2, 3/4" compression
Part Number : GFC-2145
Dwyer's GFC-2145 gas mass flow controller covers 0-1000 L/min, stated as an equivalent flow of nitrogen at 21°C, 760 mm Hg, and uses a 3/4" compression fitting. The GFC-2145 pairs a restrictor flow element with a straight-tube sensor and gives linear 0-5 VDC and 4-20 mA outputs.
- GFC-2145 accuracy ±1.5% FS (5 to 25°C, 5 to 60 psia), repeatability ±0.25% FS
- Response of the GFC-2145: 2 s to within ±2% of actual flow, shown on a tiltable 3-1/2 digit LCD
- GFC-2145 pressure limit: 500 psig (34.5 bar)
- Wetted parts of the GFC-2145: 316 SS with fluoroelastomer O-rings
- Operates at 0 to 50°C from ±12 VDC (GFC-2145)
Free UAE shipping available
For pricing, please contact our experts.
