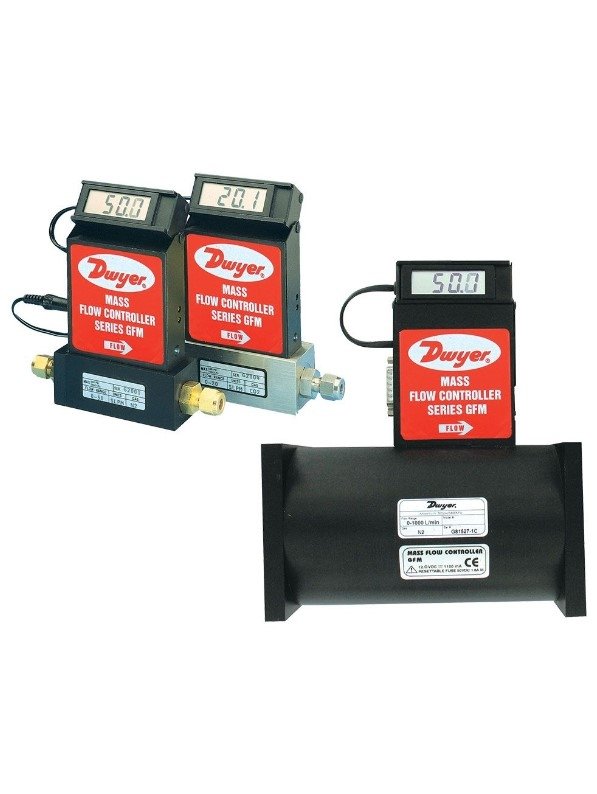

Dwyer GFM-1102 | Gas Mass Flow Meter | 0-20 mL/min N2, 1/4" compression
Part Number : GFM-1102
The Dwyer GFM-1102 is a gas mass flow meter spanning 0-20 mL/min (equivalent nitrogen at 21°C, 760 mm Hg) and fitted with a 1/4" compression fitting. The GFM-1102 reads out on a 90° tiltable 3-1/2 digit LCD and is supplied with a traceable NIST certificate.
- GFM-1102 accuracy ±1% FS (5 to 25°C, 5 to 60 psia), repeatability ±0.25% FS
- GFM-1102 response: 2 s to within ±2% of flow
- GFM-1102 pressure limit: 1000 psig (68.9 bar)
- Wetted parts of the GFM-1102: anodized aluminium, brass and 316 SS with fluoroelastomer O-rings
- Operates at 0 to 50°C from ±12 VDC (GFM-1102)
- 0-5 VDC and 4-20 mA outputs; usable with the Series GFT Flow Totalizer (GFM-1102)
