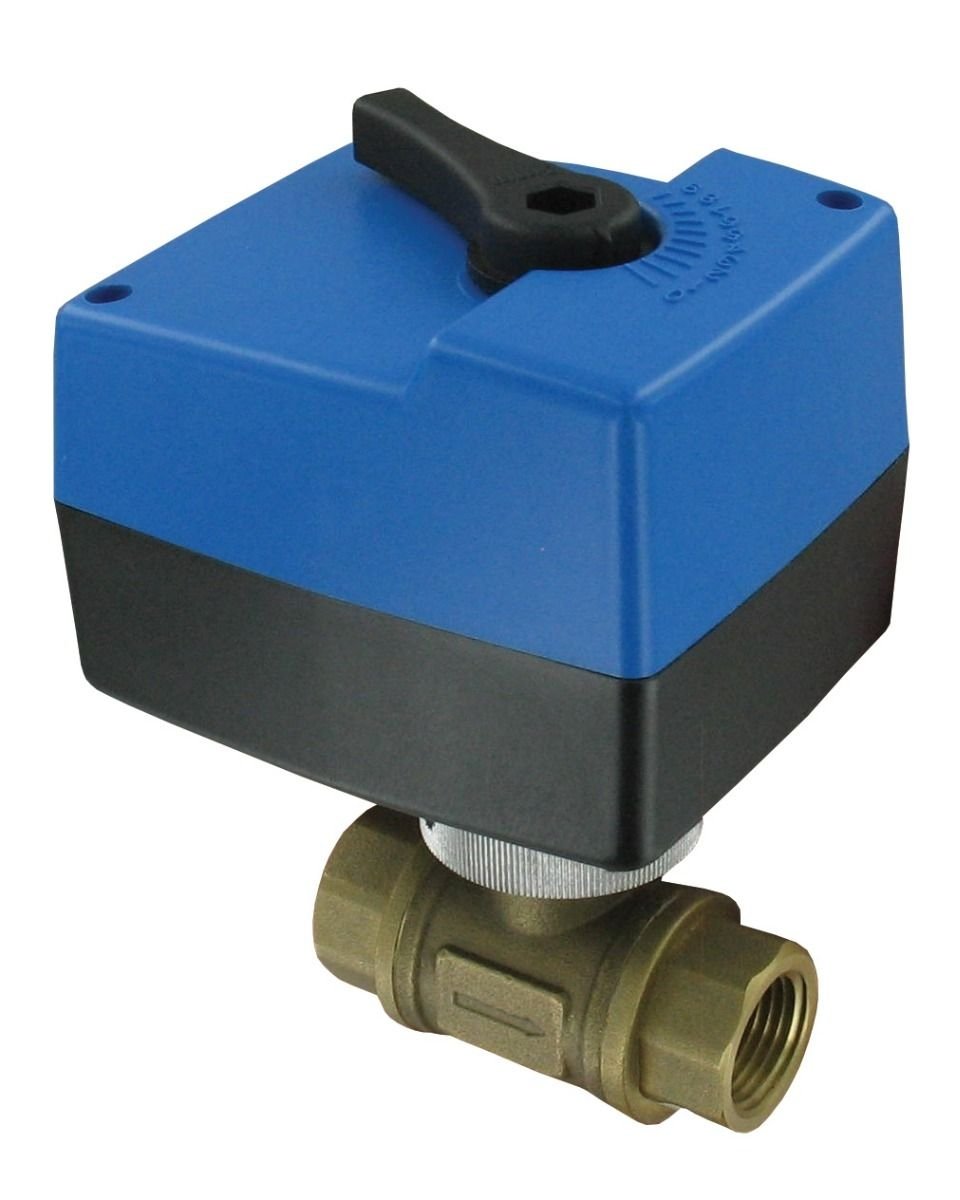

Dwyer Instruments HBAV0514 | 2-Way ball valve | 1-1/4" NPT | Floating | 24 VAC
An electrical ball valve that is perfect for controlling flow in HVAC systems with both hot and cold water is the Model HBAV0514. These valves are commonly utilized in the water treatment, industrial, heating, and air conditioning industries. Through the use of a bidirectional AC motor, the HBAV is electrically propelled to open or close. The electrical valve has an actuator that may be detached and has position switches and an indicator. Actuators for the HBAV can be floating or modulating.

Free UAE shipping available
- Specifications
- Features
- Downloads
Body | 2-way, NC |
Connection | 1-1/4" NPT |
Connection | Electrical: 18 AWG |
Cycle Time | (per 90°): 1/2 to 1": 45 sec. 1-1/4 to 2": 50 sec |
Enclosure Rating | NEMA 1 (IP10) |
End connection | Female NPT |
Housing Material | Plastic, nylon, and polyoxymethylene |
Input | Floating: 3-wire Modulating: 4 to 20 mA (24 VAC power only) |
Manufacturer | Dwyer Instruments |
Material | Wetted: Brass, SS, NBR, PTFE |
Maximum Operating Pressure | Max: 375 psi (25 bar) Close off: 87 psi (6 bar) |
Maximum operating temperature | Ambient: -22 to 158°F (-30 to 70°C) Process: 23 to 122°F (-5 to 50°C) |
POWER CONSUMPTION | Floating: 3 to 5 VA Modulating: 4 VA |
Power | 24 VAC |
Size | Line: 1/2 to 2" NPT |
Type | 2-Way Ball Valve |
Weight | 3.20 lb [1.45 kg] |
- Manual override.
- Actuator that can be detached.
- Elevated CV values.
