Name: Dwyer Instruments IEF-SB-PG-LCD | Insertion Electromagnetic flow transmitter | Standard accuracy 4-36" (100-900 mm) pipe | 1% FS | 1" male BSPT | pg gland without cable with LCD display
Brand: Dwyer
SKU: IEF-SB-PG-LCD
Availability: OutOfStock

Part Number : IEF-SB-PG-LCD

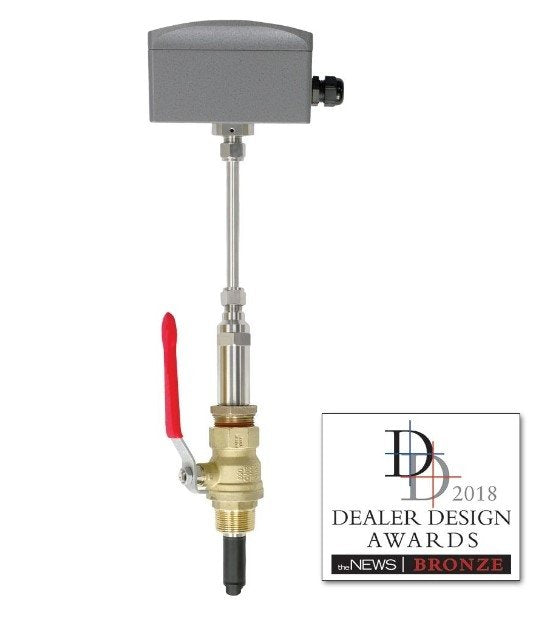

The Model IEF-SB-PG-LCD Insertion Electromagnetic Flow Transmitter is an adjustable insertion flowmeter using electromagnetic technology that provides many continuous signal outputs along with an accurate and dependable measurement of fluid velocity. This series is particularly made to provide excellent performance together with ease of use and installation. One device has many output possibilities, including configurable BACnet MS/TP or Modbus® RTU communications protocol over 2-wire RS-485 in addition to the typical analog, frequency, and alarm outputs. It can accommodate pipe widths ranging from 4" to 36" (102 to 914 mm).

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Accuracy	High accuracy units: +/-0.5% of reading at calibrated velocity +/-1% of reading from 2 to 20 ft/s (0.6 to 6 m/s) +/-0.02 ft/s (+/-0.006 m/s) at < 2 ft/s (0.6 m/s) Standard accuracy units: +/-1% FS
Applicable Pipe Material	Most popular plastic and metal pipes i.e. Carbon steel, SS, copper, UPVC/PVDF, galvanized steel, mild steel, and brass
Applicable Pipe Size	4 to 36" (101 to 914 mm), model dependent. See model chart on catalog page
Approvals	BTL, CE
communication	Type: BACnet MS/TP or Modbus® RTU communication protocol (default disabled, display selectable)
Conductivity Range	>20 microsiemens
Connection	Electrical: Removable terminal blocks, model selectable 1/2" female NPT conduit connection, PG 16 gland or PG 16 gland with (2) 10 ft (3 m) 9 conductor 22 AWG plenum rated cables, accessory cable lengths up to 200 ft (61 m) optional
Connection	Process: 1" NPT or BSPT with accessory full port ball valve options
Device Load	1/8 unit load.
Diameter	>10 upstream, >5 downstream
Display	2" ( 5.08 cm) x 2" (5.08 cm) graphic LCD with backlight
ENCLOSURE MATERIAL	Powder coated die cast aluminum
Enclosure Rating	NEMA 6P (IP68) (Non display models) NEMA 4X (IP66) (-LCD option)
Glycol	0 to 100% display selectable
Manufacturer	Dwyer Instruments
Material	Wetted: Body shaft/fitting: 316SS Electrodes: 316SS Electrode cap: Polymer/Polystyrene O-ring: Silicon
Maximum Operating Pressure	400 psi (27.6 bar) @ 100o F (37.8°C)
Maximum operating temperature	Ambient: -20 to 160°F (-29 to 71°C) Process: 15 to 250°F (-9 to 121°C) Storage: -40 to 185°F (-40 to 85°C)
Output	(1) Analog: 4-20 mA, 0-5 V, 0-10 V or 2-10 V (display selectable) (1) Pulse/Frequency: 0-15 V peak pulse, 0 to 500 Hz or scalable pulse output (display selectable) (2) Alarm: (1) Empty pipe detection or minimum/maximum velocity, (display selectable) (1) Reverse flow output indication
Power	12 to 42.4 VDC, .25 A @ 24 VDC 12 to 36 VAC
PRESSURE	Drop: < 0.1 psi at 12 ft/s in 4" (101.6 mm) and larger pipe
Range	0 to 20 ft/s (0 to 6 m/s)
Supported Baud Rates	9600, 19200, 38400, 57600, 76800, or 115200 bps (display selectable)
Type	Insertion Electromagnetic Flow Transmitter

Field configurable setup displays (-LCD integral option or remote accessory A-IEF-DSP) can be used to meet application requirements because they can accommodate multiple display configurations (such as alarm outputs, communication outputs, pipe size, pipe material, liquid type, analog output, pulse/frequency output, damping, and calibration factor) with a single model.
As temperature, density, or viscosity varies, maintain system efficiency with great performance precision.
With an installation tool and setup wizard that are straightforward to use and enable exact installation, ordering and setup are quick and simple.
With the accompanying thickness gage and measuring tape, accessory setup kit A-IEF-KIT assures precise installation application depth, saving you time.
Long product life, lower costs, and less maintenance needed since there are no moving components to wear out or break and fouling-inhibiting electrodes.
Reduce installation costs with isolation valve accessory choices that enable hot-tap kit installation in running systems or simple removal without requiring system downtime.
The NIST traceable pass/fail verification certificate for Carbon Steel Schedule 40 pipes in the sizes of 4" (102 mm), 6" (150 mm), and 8" (200 mm) must be accompanied by the necessary paperwork.

DOWNLOAD CATALOG

Dwyer Instruments IEF-SB-PG-LCD | Insertion Electromagnetic flow transmitter | Standard accuracy 4-36" (100-900 mm) pipe | 1% FS | 1" male BSPT | pg gland without cable with LCD display

Dwyer Instruments A-IEF-IDSP-RM | Indicating remote display for use with Series IEF

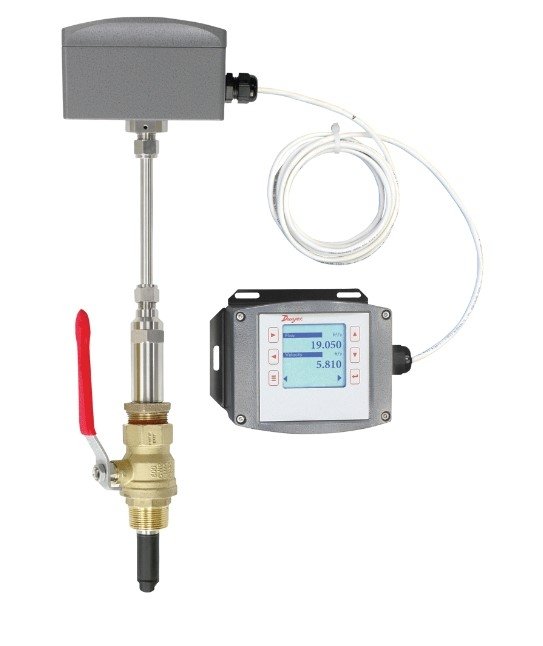

Dwyer Instruments A-IEF-FDSP-RM | Full functional remote display for use with Series IEF
