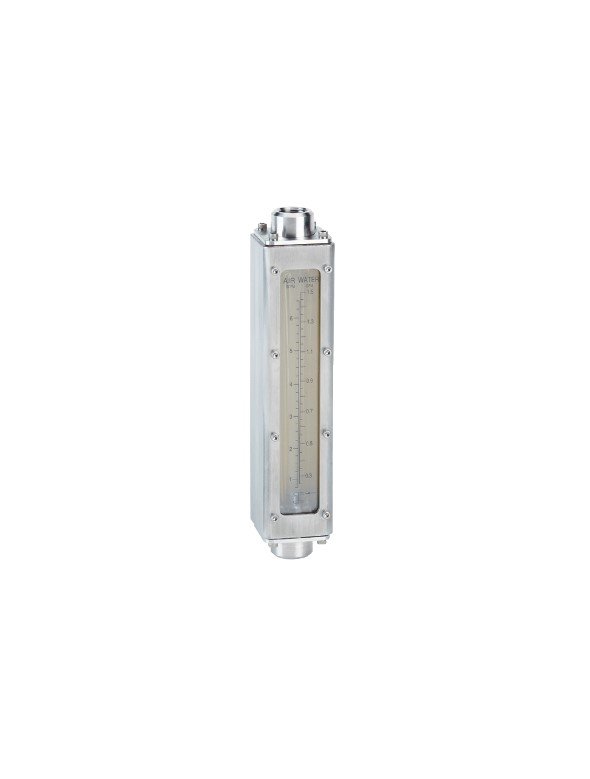

Dwyer Instruments IF2713 | Industrial direct reading flowmeter | Max. flow rate 20 GPM (75 LPM) water | 90 SCFM (2600 LPM) air | Pressure drop 39" w.c. | 1" female NPT

Client Production

Dedicated Support

Genuine Products

Client Production

Dedicated Support

Genuine Products

Part Number : IF2713

Industrial Direct Reading is provided by the Series IF, Model IF2713. Flowmeters are devices that measure flow rates directly, up to 250 SCFM (7080 LPM) for air service and 116 GPM (439 LPM) for water.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Accuracy	+/-3% of FS
Connection	1" female NPT
Front Shield	Polycarbonate
Manufacturer	Dwyer Instruments
Material	Wetted: Flowtube: Borosilicate glass float, guide rods, float stops, end Fittings: 316 SS O-rings: Fluoroelastomer
Maximum Operating Pressure	200 psi (13.8 bar) 125 psi for tube size 5 & 6
Maximum operating temperature	200°F (93°C)
Mounting	Vertical
Ratio	Turn-down: 10:1
Repeatability	+/-0.5% of FS
Scale	Dual scale GPM and SCFM
Side Panels	304 SS.
Turn-down Ratio	10:1
Type	Industrial Direct Reading Flowmeters

Time is saved by using direct read scales that do not require correlation charts.
At the highest rated temperature and pressure, a clear, 3/16" thick polycarbonate front shield that is detachable offers protection.
