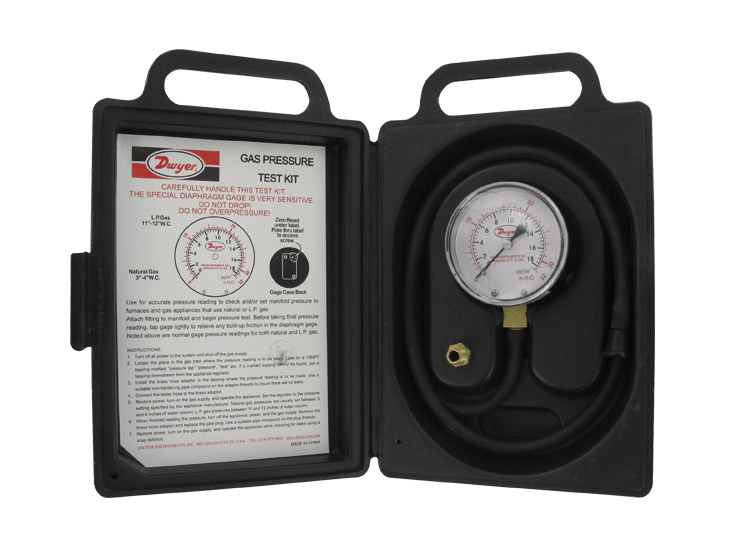

Dwyer Instruments LPTK-04 | Low pressure gas test kit | 0-8 kPa & 0-80 mbar
For testing LP and natural gas lines and controls, use the Series LPTK, LPTK-04 Gas Pressure Test Kit. The gauge on the kit indicates whether there is appropriate pressure or a leak. With an easy-to-use calibration screw on the back, each of the two gage ranges in the Series LPTK Gas Pressure Test Kit is accurate to within 3% of full scale. Compared to a manometer, it is simpler to use and comes with a protective case for handling safety.

Free UAE shipping available
- Specifications
- Features
- Downloads
Accuracy | +/-3% full scale |
Casing | ABS plastic |
Connection | Process: 1/8" NPT, brass hose barb |
hose | Rubber, 36" (91.4 cm) |
Housing Material | Steel with black finish |
Material | Wetted: Gage: brass; Hose: rubber |
Maximum Operating Pressure | 110% of range |
Maximum operating temperature | -40 to 150oF (-40 to 65oC) |
Size | 2-1/2" (63 mm) |
Tube | Nipple: Rubber |
Weight | 1.75 lb (0.8 kg) |
- A calibration screw located on the gage's rear.
- Easy-to-use interface that is straightforward.
