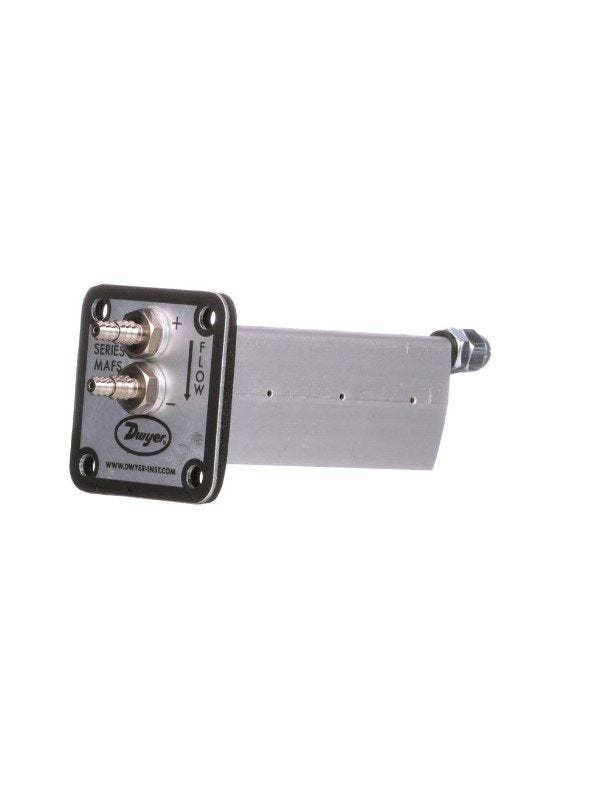

Dwyer MAFS-630MM | Metal Averaging Flow Sensor | 630 mm probe, K-factor 0.81
Dwyer MAFS-630MM is a metal averaging flow sensor with a 630 mm probe and a K-factor of 0.81, used to measure velocity pressure inside air ducts. Equally spaced total and static pressure sensing points on the 630 mm probe make it suitable for connection to Dwyer air velocity instruments.
- Accuracy for the 630 mm probe: ±2% FS from 400 to 9000 FPM (45.7 m/s)
- Design flow 400 to 12,000 fpm (2 to 60.91 m/s) on the 630 mm probe
- Dual barb process connection on the MAFS-630MM for 3/16" or 1/4" ID tubing
- Aluminium AA6063 wetted parts on the MAFS-630MM, rated to 400°F (204°C); gasket -31 to 230°F (-35 to 110°C)
- MAFS-630MM meets the technical requirements of EU RoHS II (2011/65/EU)
- Specifications
- Features
- Downloads
| Part Number | MAFS-630MM |
| Brand | Dwyer |
| Product Type | Metal averaging flow sensor |
| Process Connection | Dual barb for 3/16" or 1/4" ID tubing |
| Probe Length | 630 mm (24.8 in) |
| K-Factor | 0.81 |
| Accuracy | ±2% FS (400 to 9000 FPM) |
| Design Flow | 400 to 12,000 fpm (2 to 60.91 m/s) |
| Wetted Material | Aluminum AA6063 |
| Gasket Temperature | -31 to 230 °F (-35 to 110 °C) |
| Approvals | RoHS II (EU Directive 2011/65/EU) |
| Maximum Temperature | 400 °F (204 °C) |
- The design of the blade minimizes airstream disturbance.
- Aluminum structure that is lightweight.
- Square or rectangular ducts with flange mount.
